1600130023

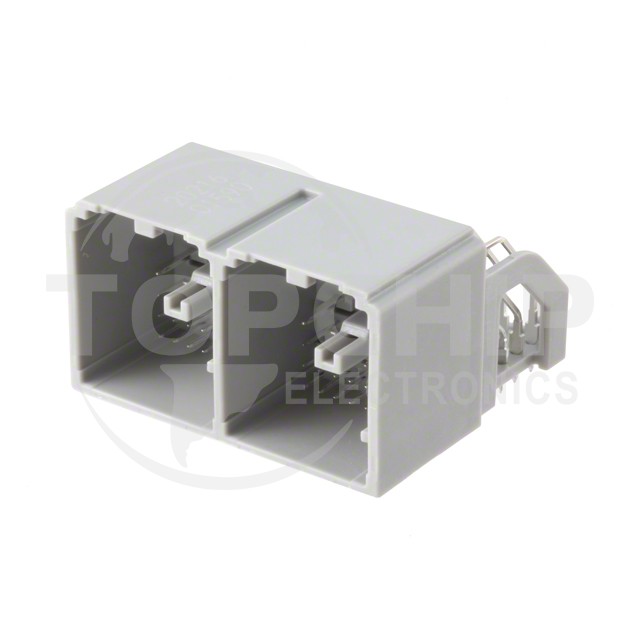

Image is for reference, please contact us to get the real picture

Manufacturer Part
1600130023
Manufacturer
Woodhead - Molex
Description
CONN HEADER R/A 56POS
Category
Connectors, Interconnects
Family
Rectangular Connectors - Headers, Male Pins
Series
-
In Stock
697
Datasheets
-

1600130023 Specifications

  • Series:stAK50h 160013
  • Package:Tube
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Blade
  • Pitch - Mating:-
  • Number of Positions:56 (28 + 28)
  • Number of Rows:-
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Through Hole, Right Angle
  • Termination:Solder
  • Fastening Type:Latch Holder
  • Contact Length - Mating:-
  • Contact Length - Post:0.083" (2.11mm)
  • Overall Contact Length:-
  • Insulation Height:0.902" (22.90mm)
  • Contact Shape:Rectangular
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:-
  • Contact Finish - Post:Tin
  • Contact Material:Copper Alloy
  • Insulation Material:-
  • Features:Board Guide
  • Operating Temperature:-40°C ~ 85°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 HB
  • Insulation Color:Gray
  • Current Rating (Amps):-
  • Voltage Rating:-
