0428204223

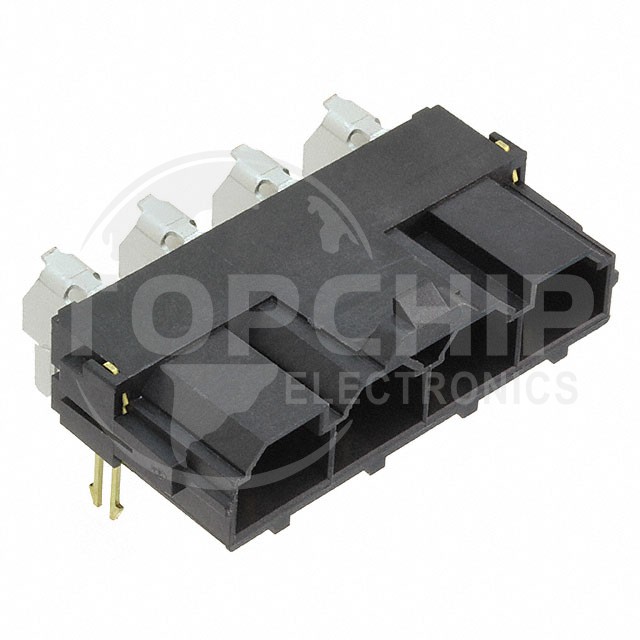

Image is for reference, please contact us to get the real picture

Manufacturer Part
0428204223
Manufacturer
Woodhead - Molex
Description
CONN HEADER R/A 4POS 10MM
Category
Connectors, Interconnects
Family
Rectangular Connectors - Headers, Male Pins
Series
-
In Stock
853
Datasheets
-

0428204223 Specifications

  • Series:Mini-Fit Sr 42820
  • Package:Tube
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Blade
  • Pitch - Mating:0.394" (10.00mm)
  • Number of Positions:4
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Through Hole, Right Angle
  • Termination:Solder
  • Fastening Type:Locking Ramp
  • Contact Length - Mating:-
  • Contact Length - Post:0.201" (5.11mm)
  • Overall Contact Length:-
  • Insulation Height:0.421" (10.70mm)
  • Contact Shape:Rectangular
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:30.0µin (0.76µm)
  • Contact Finish - Post:Tin
  • Contact Material:Copper Zirconium Alloy
  • Insulation Material:Polyamide (PA46), Nylon 4/6, Glass Filled
  • Features:Board Lock
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):-
  • Voltage Rating:-
