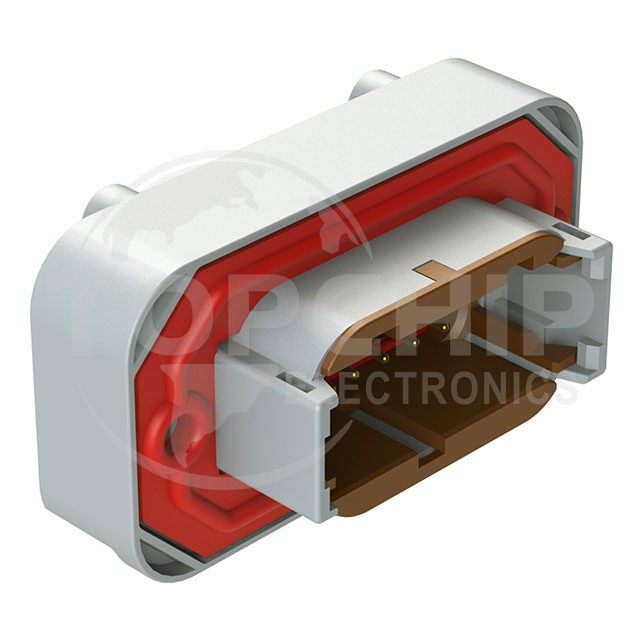

ATM13-12PD-BM01

Image is for reference, please contact us to get the real picture

Manufacturer Part
ATM13-12PD-BM01
Manufacturer
Tuchel / Amphenol
Description
CONN HEADER R/A 12POS
Category
Connectors, Interconnects
Family
Rectangular Connectors - Headers, Male Pins
Series
-
In Stock
98180
Datasheets
-

ATM13-12PD-BM01 Specifications

  • Series:BoardLock™ ATM
  • Package:Tray
  • Part Status:Active
  • Connector Type:Receptacle
  • Contact Type:Male Pin
  • Pitch - Mating:-
  • Number of Positions:12
  • Number of Rows:2
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Through Hole, Right Angle
  • Termination:Solder
  • Fastening Type:Latch Holder
  • Contact Length - Mating:-
  • Contact Length - Post:0.120" (3.05mm)
  • Overall Contact Length:-
  • Insulation Height:1.303" (33.10mm)
  • Contact Shape:Circular
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:-
  • Contact Finish - Post:Gold
  • Contact Material:Copper Alloy
  • Insulation Material:Thermoplastic
  • Features:Board Guide, Mating Flange, Mounting Flange
  • Operating Temperature:-55°C ~ 125°C
  • Ingress Protection:IP67
  • Material Flammability Rating:-
  • Insulation Color:Gray
  • Current Rating (Amps):7.5A
  • Voltage Rating:250V
