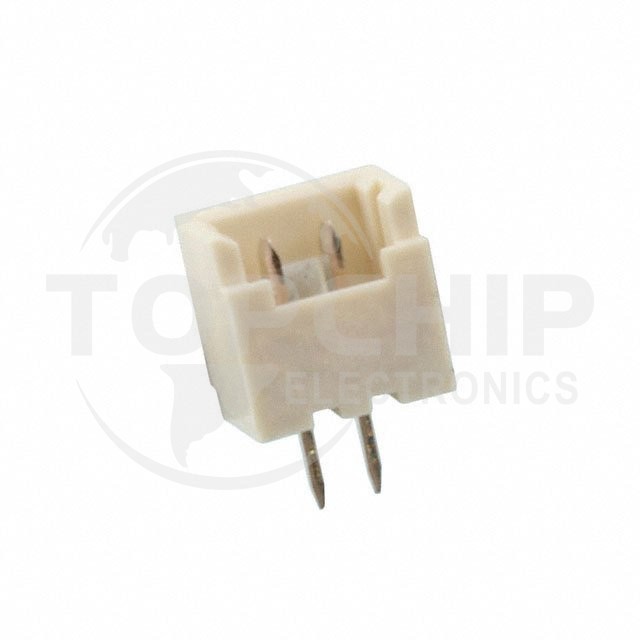

0530470210 Specifications

• Series:PicoBlade 53047
• Package:Tray
• Part Status:Active
• Connector Type:Header
• Contact Type:Male Blade
• Pitch - Mating:0.049" (1.25mm)
• Number of Positions:2
• Number of Rows:1
• Row Spacing - Mating:-
• Number of Positions Loaded:All
• Style:Board to Cable/Wire
• Shrouding:Shrouded - 4 Wall
• Mounting Type:Through Hole
• Termination:Solder
• Fastening Type:Detent Lock
• Contact Length - Mating:0.089" (2.25mm)
• Contact Length - Post:0.091" (2.30mm)
• Overall Contact Length:-
• Insulation Height:0.165" (4.20mm)
• Contact Shape:Rectangular
• Contact Finish - Mating:Tin
• Contact Finish Thickness - Mating:35.4µin (0.90µm)
• Contact Finish - Post:Tin
• Contact Material:Phosphor Bronze
• Insulation Material:Polyamide (PA66), Nylon 6/6
• Features:-
• Operating Temperature:-
• Ingress Protection:-
• Material Flammability Rating:UL94 V-0
• Insulation Color:Natural
• Current Rating (Amps):-
• Voltage Rating:-
