1718574006

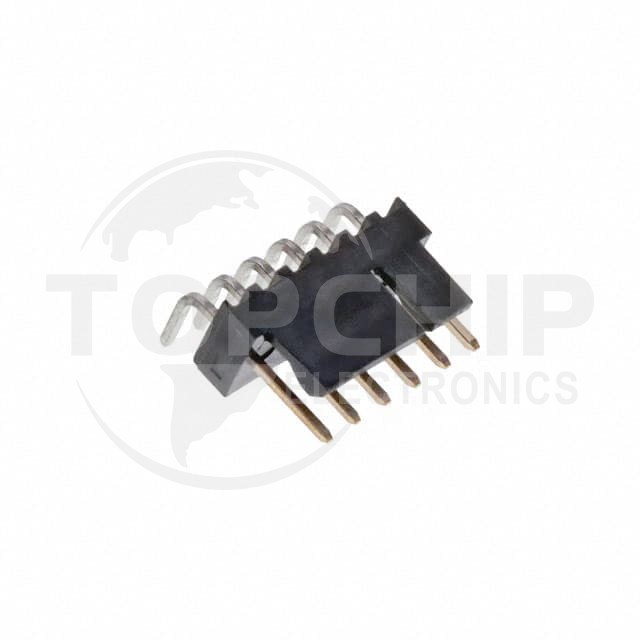

Image is for reference, please contact us to get the real picture

Manufacturer Part
1718574006
Manufacturer
Woodhead - Molex
Description
CONN HEADER R/A 6POS 2.54MM
Category
Connectors, Interconnects
Family
Rectangular Connectors - Headers, Male Pins
Series
-
In Stock
1861
Datasheets
-

1718574006 Specifications

  • Series:KK254, 171857
  • Package:Tape & Reel (TR)Cut Tape (CT)
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:6
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Shrouded - 1 Wall
  • Mounting Type:Through Hole, Right Angle
  • Termination:Solder
  • Fastening Type:Friction Lock
  • Contact Length - Mating:0.265" (6.73mm)
  • Contact Length - Post:0.100" (2.54mm)
  • Overall Contact Length:-
  • Insulation Height:0.250" (6.35mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:15.0µin (0.38µm)
  • Contact Finish - Post:Tin
  • Contact Material:Brass
  • Insulation Material:Polyamide (PA), Nylon
  • Features:-
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-2
  • Insulation Color:Black
  • Current Rating (Amps):-
  • Voltage Rating:-
