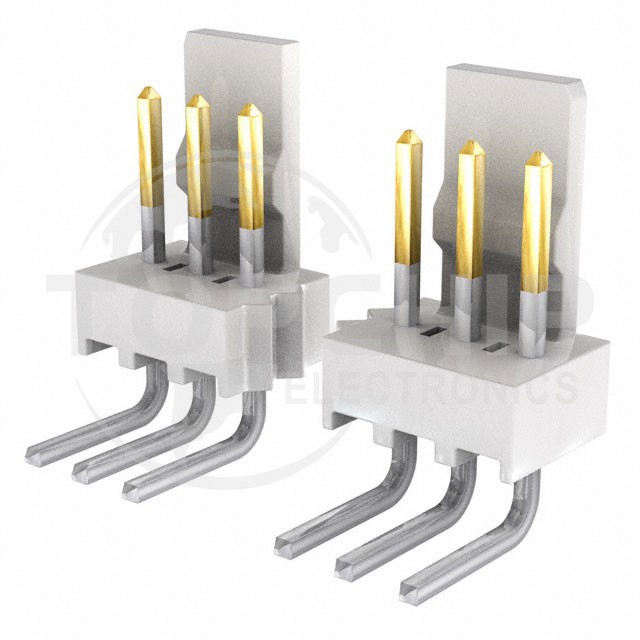

0022124082 Specifications

• Series:KK254, 7395
• Package:Bulk
• Part Status:Active
• Connector Type:Header
• Contact Type:Male Pin
• Pitch - Mating:0.100" (2.54mm)
• Number of Positions:8
• Number of Rows:1
• Row Spacing - Mating:-
• Number of Positions Loaded:All
• Style:Board to Board or Cable
• Shrouding:Shrouded - 1 Wall
• Mounting Type:Through Hole, Right Angle
• Termination:Solder
• Fastening Type:Friction Lock
• Contact Length - Mating:0.264" (6.70mm)
• Contact Length - Post:0.150" (3.81mm)
• Overall Contact Length:-
• Insulation Height:0.228" (5.80mm)
• Contact Shape:Square
• Contact Finish - Mating:Gold
• Contact Finish Thickness - Mating:20.0µin (0.51µm)
• Contact Finish - Post:Tin
• Contact Material:Brass
• Insulation Material:Polyamide (PA66), Nylon 6/6
• Features:-
• Operating Temperature:-
• Ingress Protection:-
• Material Flammability Rating:UL94 V-0
• Insulation Color:Natural
• Current Rating (Amps):-
• Voltage Rating:-
