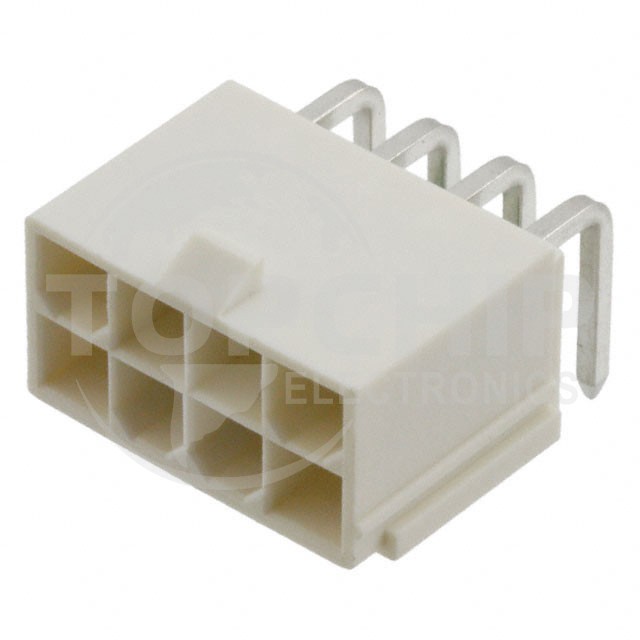

0874270802 Specifications

• Series:Mini-Fit Jr 87427
• Package:Tray
• Part Status:Active
• Connector Type:Header
• Contact Type:Male Pin
• Pitch - Mating:0.165" (4.20mm)
• Number of Positions:8
• Number of Rows:2
• Row Spacing - Mating:0.165" (4.20mm)
• Number of Positions Loaded:All
• Style:Board to Cable/Wire
• Shrouding:Shrouded - 4 Wall
• Mounting Type:Through Hole, Right Angle
• Termination:Solder
• Fastening Type:Locking Ramp
• Contact Length - Mating:-
• Contact Length - Post:0.130" (3.30mm)
• Overall Contact Length:-
• Insulation Height:0.394" (10.00mm)
• Contact Shape:Square
• Contact Finish - Mating:Tin
• Contact Finish Thickness - Mating:100.0µin (2.54µm)
• Contact Finish - Post:Tin
• Contact Material:Brass
• Insulation Material:Polyamide (PA46), Nylon 4/6
• Features:-
• Operating Temperature:-
• Ingress Protection:-
• Material Flammability Rating:UL94 V-0
• Insulation Color:Beige
• Current Rating (Amps):-
• Voltage Rating:-
