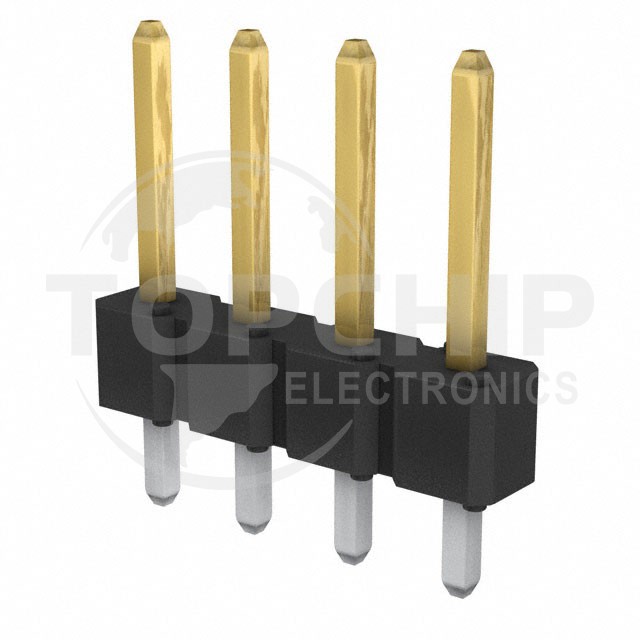

77311-127-04LF Specifications

• Series:BERGSTIK®
• Package:Bulk
• Part Status:Active
• Connector Type:Header
• Contact Type:Male Pin
• Pitch - Mating:0.100" (2.54mm)
• Number of Positions:4
• Number of Rows:1
• Row Spacing - Mating:-
• Number of Positions Loaded:All
• Style:Board to Board
• Shrouding:Unshrouded
• Mounting Type:Through Hole
• Termination:Solder
• Fastening Type:Push-Pull
• Contact Length - Mating:0.260" (6.60mm)
• Contact Length - Post:0.105" (2.67mm)
• Overall Contact Length:0.465" (11.81mm)
• Insulation Height:0.100" (2.54mm)
• Contact Shape:Square
• Contact Finish - Mating:Gold or Gold, GXT™
• Contact Finish Thickness - Mating:30.0µin (0.76µm)
• Contact Finish - Post:Tin
• Contact Material:Phosphor Bronze
• Insulation Material:Thermoplastic
• Features:-
• Operating Temperature:-
• Ingress Protection:-
• Material Flammability Rating:UL94 V-0
• Insulation Color:Black
• Current Rating (Amps):-
• Voltage Rating:-
