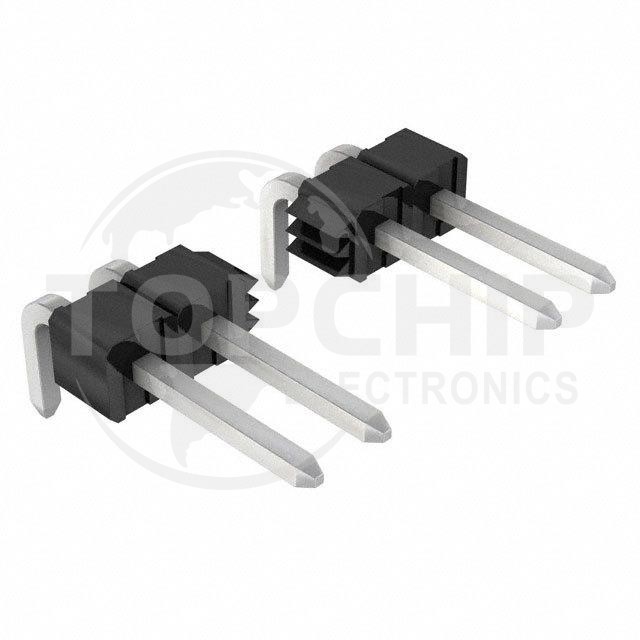

0022288110 Specifications

• Series:KK254, 42377
• Package:Bulk
• Part Status:Active
• Connector Type:Header, Breakaway
• Contact Type:Male Pin
• Pitch - Mating:0.100" (2.54mm)
• Number of Positions:11
• Number of Rows:1
• Row Spacing - Mating:-
• Number of Positions Loaded:All
• Style:Board to Board or Cable
• Shrouding:Unshrouded
• Mounting Type:Through Hole, Right Angle
• Termination:Solder
• Fastening Type:Push-Pull
• Contact Length - Mating:0.244" (6.20mm)
• Contact Length - Post:0.120" (3.05mm)
• Overall Contact Length:-
• Insulation Height:0.098" (2.50mm)
• Contact Shape:Square
• Contact Finish - Mating:Tin
• Contact Finish Thickness - Mating:100.0µin (2.54µm)
• Contact Finish - Post:Tin
• Contact Material:-
• Insulation Material:Polyamide (PA), Nylon, Glass Filled
• Features:-
• Operating Temperature:-
• Ingress Protection:-
• Material Flammability Rating:UL94 V-0
• Insulation Color:Black
• Current Rating (Amps):-
• Voltage Rating:-
