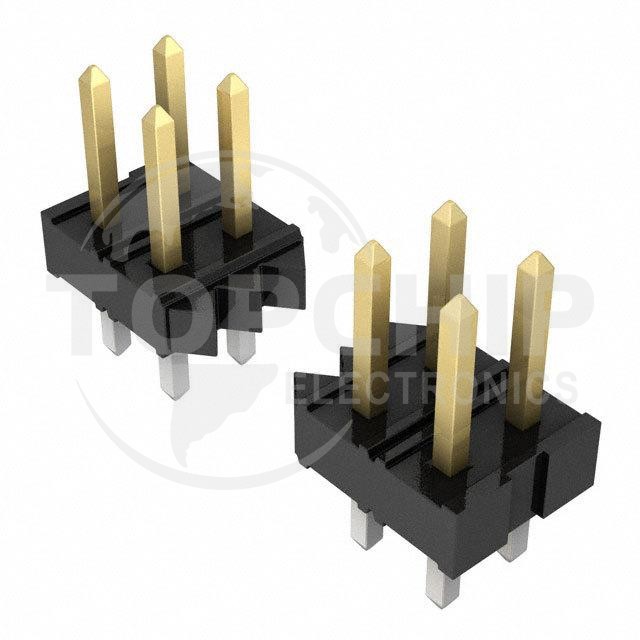

0877583216 Specifications

• Series:Milli-Grid 87758
• Package:Tray
• Part Status:Active
• Connector Type:Header, Breakaway
• Contact Type:Male Pin
• Pitch - Mating:0.079" (2.00mm)
• Number of Positions:32
• Number of Rows:2
• Row Spacing - Mating:0.079" (2.00mm)
• Number of Positions Loaded:All
• Style:Board to Board or Cable
• Shrouding:Unshrouded
• Mounting Type:Through Hole
• Termination:Solder
• Fastening Type:Push-Pull
• Contact Length - Mating:0.157" (4.00mm)
• Contact Length - Post:0.102" (2.60mm)
• Overall Contact Length:0.319" (8.10mm)
• Insulation Height:0.059" (1.50mm)
• Contact Shape:Square
• Contact Finish - Mating:Gold
• Contact Finish Thickness - Mating:15.0µin (0.38µm)
• Contact Finish - Post:Tin
• Contact Material:Phosphor Bronze
• Insulation Material:Polyamide (PA46), Nylon 4/6, Glass Filled
• Features:-
• Operating Temperature:-
• Ingress Protection:-
• Material Flammability Rating:UL94 V-0
• Insulation Color:Black
• Current Rating (Amps):-
• Voltage Rating:-
