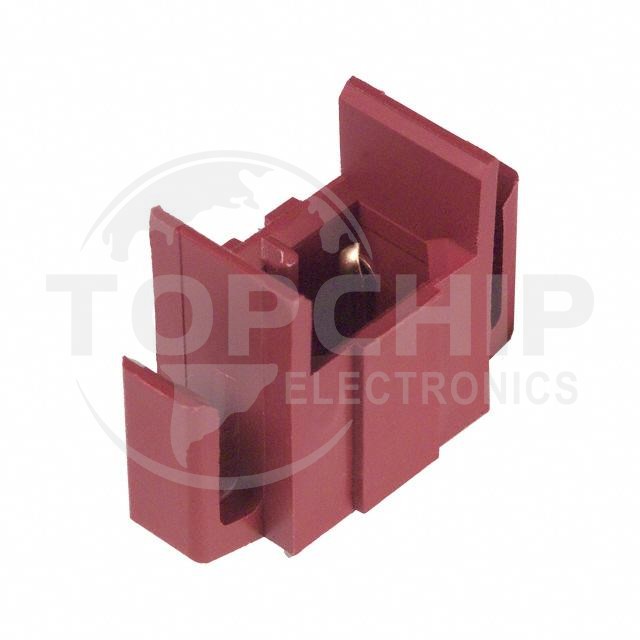

640497-2 Specifications

• Series:MR (Miniature Rectangular)
• Package:Bulk
• Part Status:Active
• Connector Type:Header
• Contact Type:Male Pin
• Pitch - Mating:0.165" (4.20mm)
• Number of Positions:2
• Number of Rows:1
• Row Spacing - Mating:-
• Number of Positions Loaded:All
• Style:Board to Cable/Wire
• Shrouding:Shrouded - 4 Wall
• Mounting Type:Through Hole
• Termination:Solder
• Fastening Type:Latch Lock
• Contact Length - Mating:0.220" (5.59mm)
• Contact Length - Post:0.150" (3.81mm)
• Overall Contact Length:-
• Insulation Height:0.531" (13.50mm)
• Contact Shape:Circular
• Contact Finish - Mating:Gold
• Contact Finish Thickness - Mating:30.0µin (0.76µm)
• Contact Finish - Post:Tin-Lead
• Contact Material:Phosphor Bronze
• Insulation Material:Polyamide (PA), Nylon
• Features:-
• Operating Temperature:-55°C ~ 105°C
• Ingress Protection:-
• Material Flammability Rating:UL94 V-0
• Insulation Color:Black, Red
• Current Rating (Amps):6A
• Voltage Rating:250VAC
