0436500300

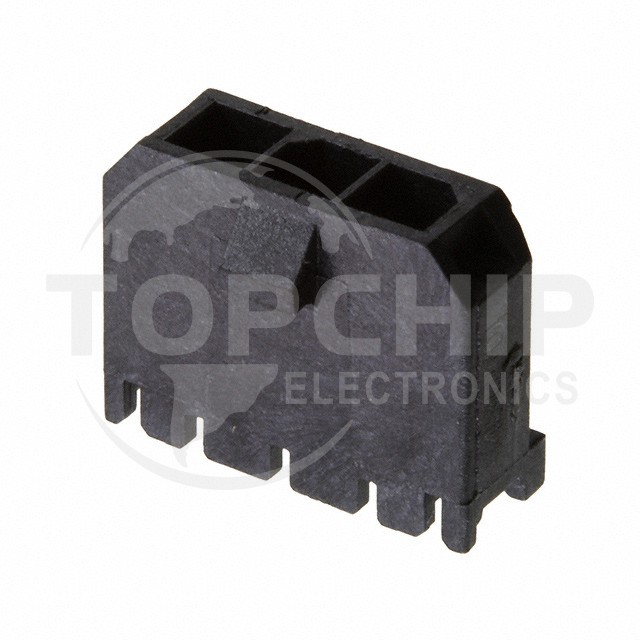

Image is for reference, please contact us to get the real picture

Manufacturer Part
0436500300
Manufacturer
Woodhead - Molex
Description
CONN HEADER R/A 3POS 3MM
Category
Connectors, Interconnects
Family
Rectangular Connectors - Headers, Male Pins
Series
-
In Stock
2147483647
Datasheets
-

0436500300 Specifications

  • Series:Micro-Fit 3.0 43650
  • Package:Tray
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.118" (3.00mm)
  • Number of Positions:3
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Through Hole, Right Angle
  • Termination:Solder
  • Fastening Type:Locking Ramp
  • Contact Length - Mating:-
  • Contact Length - Post:0.125" (3.18mm)
  • Overall Contact Length:-
  • Insulation Height:0.172" (4.37mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:60.0µin (1.52µm)
  • Contact Finish - Post:Tin
  • Contact Material:Brass
  • Insulation Material:Liquid Crystal Polymer (LCP), Glass Filled
  • Features:Board Lock
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):-
  • Voltage Rating:-
