1-1969688-2

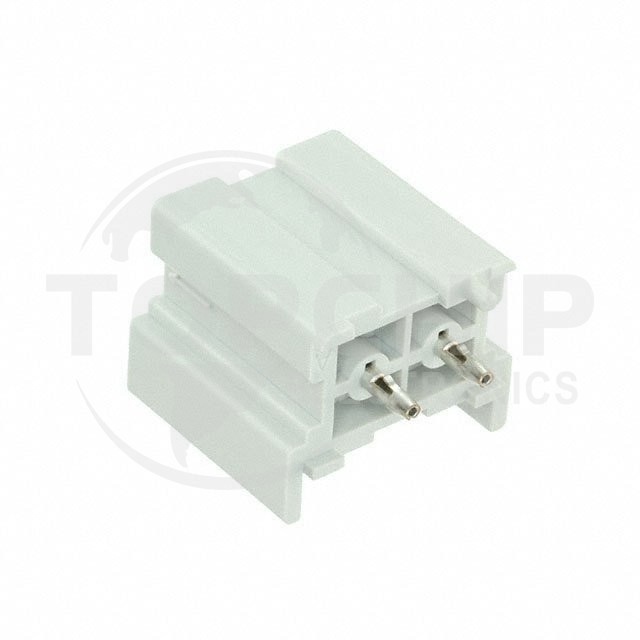

Image is for reference, please contact us to get the real picture

Manufacturer Part
1-1969688-2
Manufacturer
TE Connectivity AMP Connectors
Description
CONN HEADER VERT 2POS 6MM
Category
Connectors, Interconnects
Family
Rectangular Connectors - Headers, Male Pins
Series
-
In Stock
1
Datasheets
-

1-1969688-2 Specifications

  • Series:Power Triple Lock
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.236" (6.00mm)
  • Number of Positions:2
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Latch Holder
  • Contact Length - Mating:-
  • Contact Length - Post:0.131" (3.33mm)
  • Overall Contact Length:-
  • Insulation Height:0.681" (17.30mm)
  • Contact Shape:Rectangular
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:-
  • Contact Finish - Post:Tin
  • Contact Material:Copper Alloy
  • Insulation Material:Polyamide (PA), Nylon
  • Features:Board Guide
  • Operating Temperature:-55°C ~ 150°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Gray
  • Current Rating (Amps):Varies by Wire Gauge
  • Voltage Rating:600VAC
