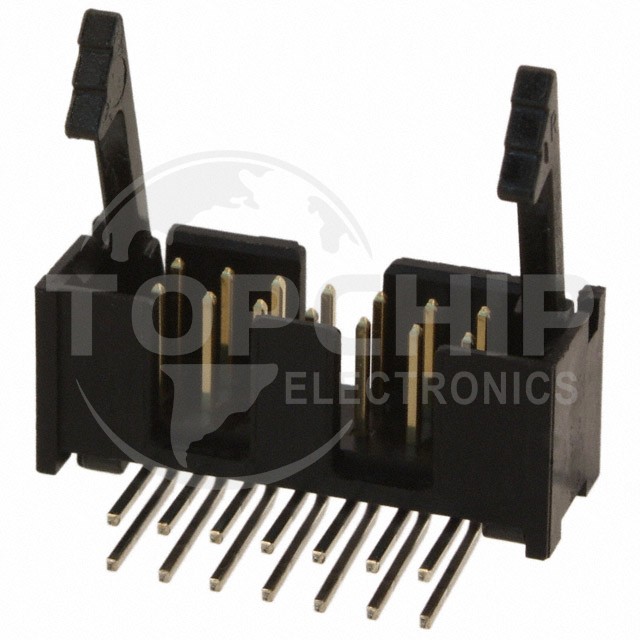

104130-2 Specifications

• Series:AMP-Latch
• Package:Bulk
• Part Status:Active
• Connector Type:Header
• Contact Type:Male Pin
• Pitch - Mating:0.100" (2.54mm)
• Number of Positions:14
• Number of Rows:2
• Row Spacing - Mating:0.100" (2.54mm)
• Number of Positions Loaded:All
• Style:Board to Cable/Wire
• Shrouding:Shrouded - 4 Wall
• Mounting Type:Through Hole, Right Angle
• Termination:Solder
• Fastening Type:Latch Lock/Eject Hooks
• Contact Length - Mating:0.200" (5.08mm)
• Contact Length - Post:0.135" (3.43mm)
• Overall Contact Length:-
• Insulation Height:0.360" (9.14mm)
• Contact Shape:Square
• Contact Finish - Mating:Gold or Gold-Palladium
• Contact Finish Thickness - Mating:30.0µin (0.76µm)
• Contact Finish - Post:Tin-Lead
• Contact Material:Brass
• Insulation Material:Polyamide (PA), Nylon, Glass Filled
• Features:Keying Slot
• Operating Temperature:-65°C ~ 105°C
• Ingress Protection:-
• Material Flammability Rating:-
• Insulation Color:Black
• Current Rating (Amps):1A per Contact
• Voltage Rating:250VAC
