2002411116

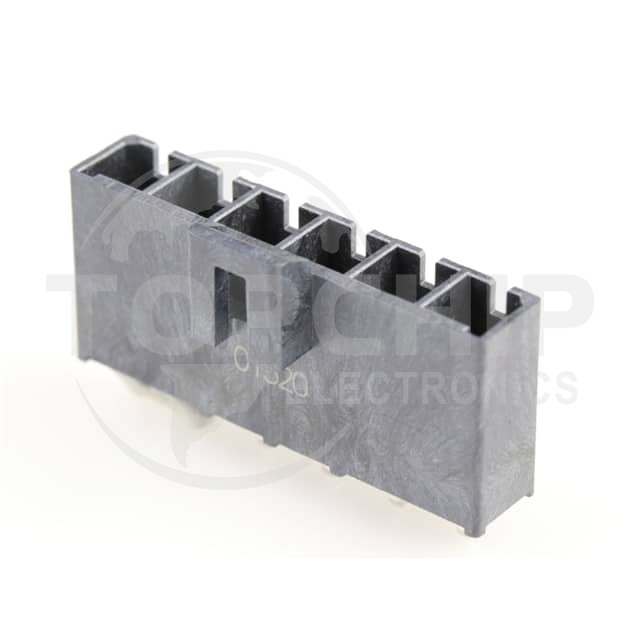

Image is for reference, please contact us to get the real picture

Manufacturer Part
2002411116
Manufacturer
Woodhead - Molex
Description
CONN HEADER VERT 6POS 5.7MM
Category
Connectors, Interconnects
Family
Rectangular Connectors - Headers, Male Pins
Series
-
In Stock
946
Datasheets
-

2002411116 Specifications

  • Series:Mega-Fit 20024
  • Package:Tray
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.224" (5.70mm)
  • Number of Positions:6
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Latch Holder
  • Contact Length - Mating:-
  • Contact Length - Post:0.127" (3.23mm)
  • Overall Contact Length:-
  • Insulation Height:0.602" (15.29mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:60.0µin (1.52µm)
  • Contact Finish - Post:Tin
  • Contact Material:Copper
  • Insulation Material:Liquid Crystal Polymer (LCP)
  • Features:Board Guide, Glow Wire Compliant
  • Operating Temperature:-40°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):Varies by Wire Gauge
  • Voltage Rating:600VAC/DC
