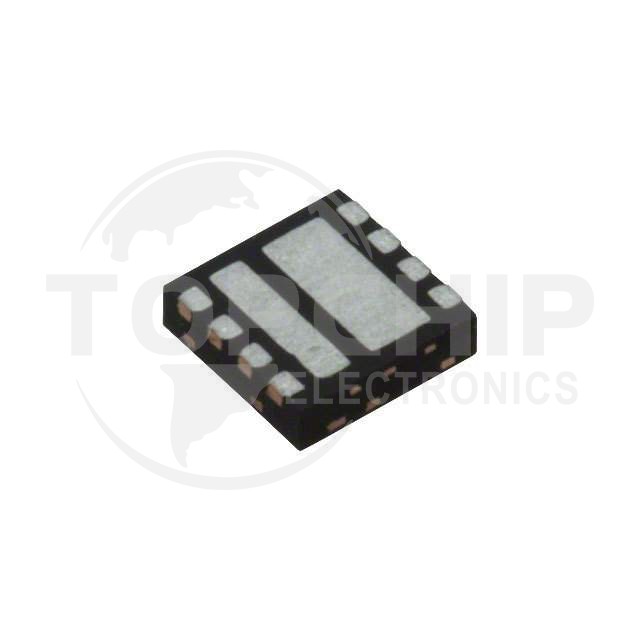

SIZ328DT-T1-GE3 Specifications

• Series:TrenchFET® Gen IV
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• FET Type:2 N-Channel (Dual)
• FET Feature:Standard
• Drain to Source Voltage (Vdss):25V
• Current - Continuous Drain (Id) @ 25°C:11.1A (Ta), 25.3A (Tc), 15A (Ta), 30A (Tc)
• Rds On (Max) @ Id, Vgs:15mOhm @ 5A, 10V, 10mOhm @ 5A, 10V
• Vgs(th) (Max) @ Id:2.5V @ 250µA
• Gate Charge (Qg) (Max) @ Vgs:6.9nC @ 10V, 11.3nC @ 10V
• Input Capacitance (Ciss) (Max) @ Vds:325pF @ 10V, 600pF @ 10V
• Power - Max:2.9W (Ta), 15W (Tc), 3.6W (Ta), 16.2W (Tc)
• Operating Temperature:-55°C ~ 150°C (TJ)
• Mounting Type:Surface Mount
• Package / Case:8-PowerWDFN
• Supplier Device Package:8-Power33 (3x3)
