1SS309(TE85L,F)

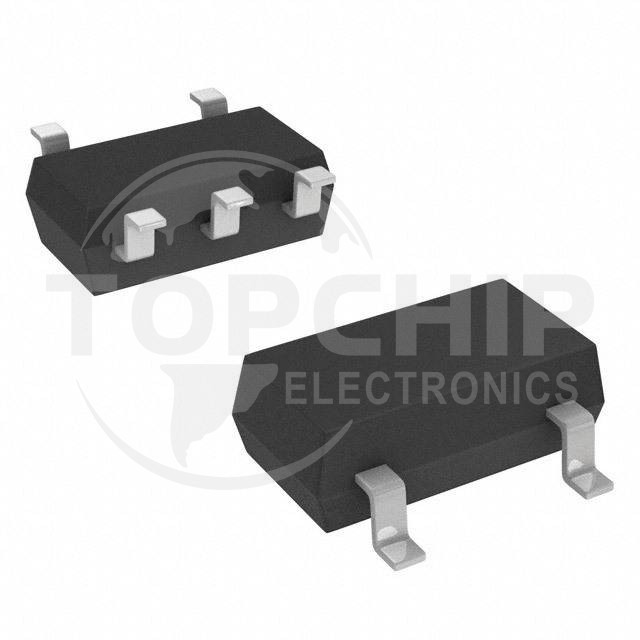

Image is for reference, please contact us to get the real picture

Manufacturer Part
1SS309(TE85L,F)
Manufacturer
Toshiba Electronic Devices and Storage Corporation
Description
DIODE ARRAY GP 80V 100MA SMV
Category
Discrete Semiconductor Products
Family
Diodes - Rectifiers - Arrays
Series
-
In Stock
23061
Datasheets
-

1SS309(TE85L,F) Specifications

  • Series:-
  • Package:Tape & Reel (TR)Cut Tape (CT)
  • Part Status:Active
  • Diode Configuration:4 Common Cathode
  • Diode Type:Standard
  • Voltage - DC Reverse (Vr) (Max):80 V
  • Current - Average Rectified (Io) (per Diode):100mA
  • Voltage - Forward (Vf) (Max) @ If:1.2 V @ 100 mA
  • Speed:Small Signal =< 200mA (Io), Any Speed
  • Reverse Recovery Time (trr):4 ns
  • Current - Reverse Leakage @ Vr:500 nA @ 80 V
  • Operating Temperature - Junction:125°C (Max)
  • Mounting Type:Surface Mount
  • Package / Case:SC-74A, SOT-753
  • Supplier Device Package:SMV
