AUIRGSL4062D1

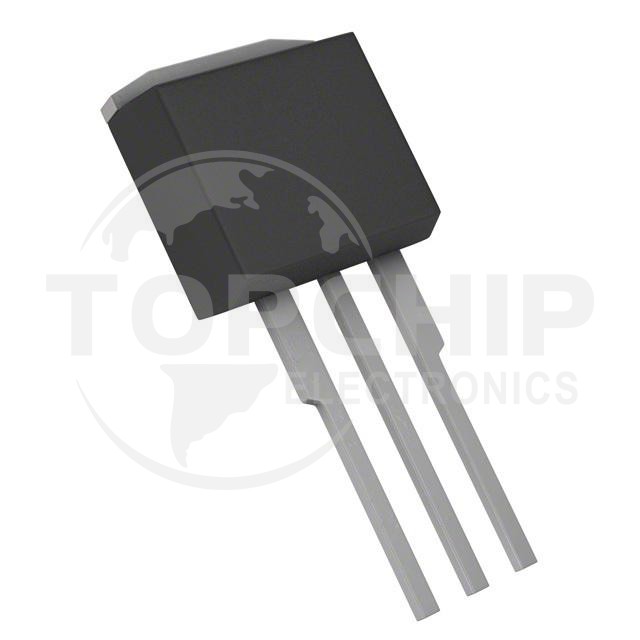

Image is for reference, please contact us to get the real picture

Manufacturer Part
AUIRGSL4062D1
Manufacturer
Rochester Electronics
Description
IGBT, 59A I(C), 600V V(BR)CES, N
Category
Discrete Semiconductor Products
Family
Transistors - IGBTs - Single
Series
-
In Stock
11350
Datasheets
-

AUIRGSL4062D1 Specifications

  • Series:-
  • Package:Bulk
  • Part Status:Active
  • IGBT Type:Trench
  • Voltage - Collector Emitter Breakdown (Max):600 V
  • Current - Collector (Ic) (Max):59 A
  • Current - Collector Pulsed (Icm):72 A
  • Vce(on) (Max) @ Vge, Ic:1.77V @ 15V, 24A
  • Power - Max:246 W
  • Switching Energy:532µJ (on), 311µJ (off)
  • Input Type:Standard
  • Gate Charge:77 nC
  • Td (on/off) @ 25°C:19ns/90ns
  • Test Condition:400V, 24A, 10Ohm, 15V
  • Reverse Recovery Time (trr):102 ns
  • Operating Temperature:-55°C ~ 175°C (TJ)
  • Mounting Type:Through Hole
  • Package / Case:TO-262-3 Long Leads, I²Pak, TO-262AA
  • Supplier Device Package:TO-262
