SSM3K72KFS,LF Specifications

• Series:U-MOSVII-H
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• FET Type:N-Channel
• Technology:MOSFET (Metal Oxide)
• Drain to Source Voltage (Vdss):60 V
• Current - Continuous Drain (Id) @ 25°C:300mA (Ta)
• Drive Voltage (Max Rds On, Min Rds On):4.5V, 10V
• Rds On (Max) @ Id, Vgs:1.5Ohm @ 100mA, 10V
• Vgs(th) (Max) @ Id:2.1V @ 250µA
• Gate Charge (Qg) (Max) @ Vgs:0.6 nC @ 4.5 V
• Vgs (Max):±20V
• Input Capacitance (Ciss) (Max) @ Vds:40 pF @ 10 V
• FET Feature:-
• Power Dissipation (Max):150mW (Ta)
• Operating Temperature:150°C
• Mounting Type:Surface Mount
• Supplier Device Package:SSM

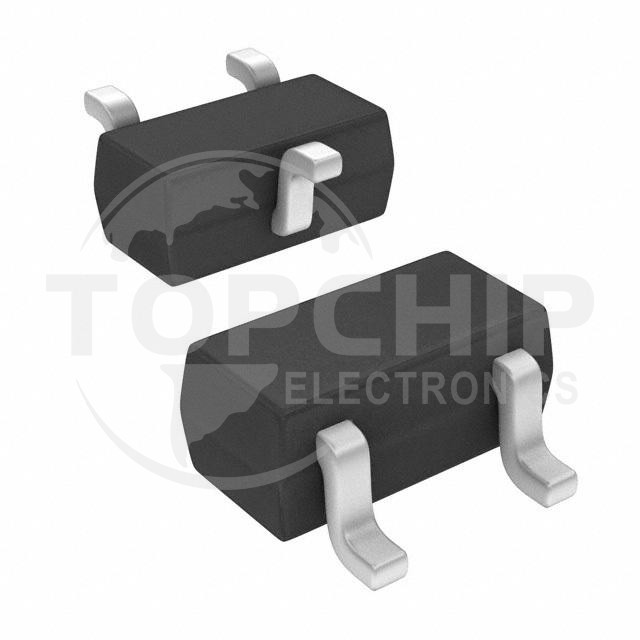

• Package / Case:SC-75, SOT-416
