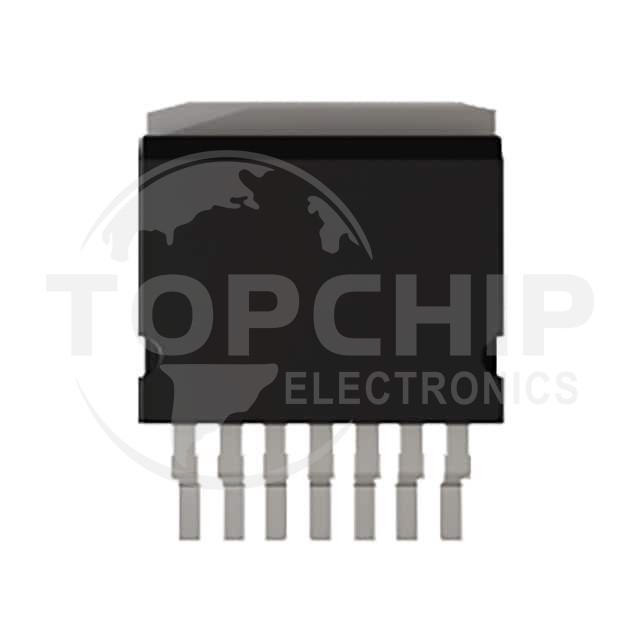

SCT3105KW7TL Specifications

• Series:-
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• FET Type:N-Channel
• Technology:SiC (Silicon Carbide Junction Transistor)
• Drain to Source Voltage (Vdss):1200 V
• Current - Continuous Drain (Id) @ 25°C:23A (Tc)
• Drive Voltage (Max Rds On, Min Rds On):-
• Rds On (Max) @ Id, Vgs:137mOhm @ 7.6A, 18V
• Vgs(th) (Max) @ Id:5.6V @ 3.81mA
• Gate Charge (Qg) (Max) @ Vgs:51 nC @ 18 V
• Vgs (Max):+22V, -4V
• Input Capacitance (Ciss) (Max) @ Vds:574 pF @ 800 V
• FET Feature:-
• Power Dissipation (Max):125W
• Operating Temperature:175°C (TJ)
• Mounting Type:Surface Mount
• Supplier Device Package:TO-263-7
• Package / Case:TO-263-8, D²Pak (7 Leads + Tab), TO-263CA
