TPCA8051-H(T2L1,VM Specifications

• Series:U-MOSVI-H
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• FET Type:N-Channel
• Technology:MOSFET (Metal Oxide)
• Drain to Source Voltage (Vdss):80 V
• Current - Continuous Drain (Id) @ 25°C:28A (Ta)
• Drive Voltage (Max Rds On, Min Rds On):4.5V, 10V
• Rds On (Max) @ Id, Vgs:9.4mOhm @ 14A, 10V
• Vgs(th) (Max) @ Id:2.3V @ 1mA
• Gate Charge (Qg) (Max) @ Vgs:91 nC @ 10 V
• Vgs (Max):±20V
• Input Capacitance (Ciss) (Max) @ Vds:7540 pF @ 10 V
• FET Feature:-
• Power Dissipation (Max):1.6W (Ta), 45W (Tc)
• Operating Temperature:150°C (TJ)
• Mounting Type:Surface Mount

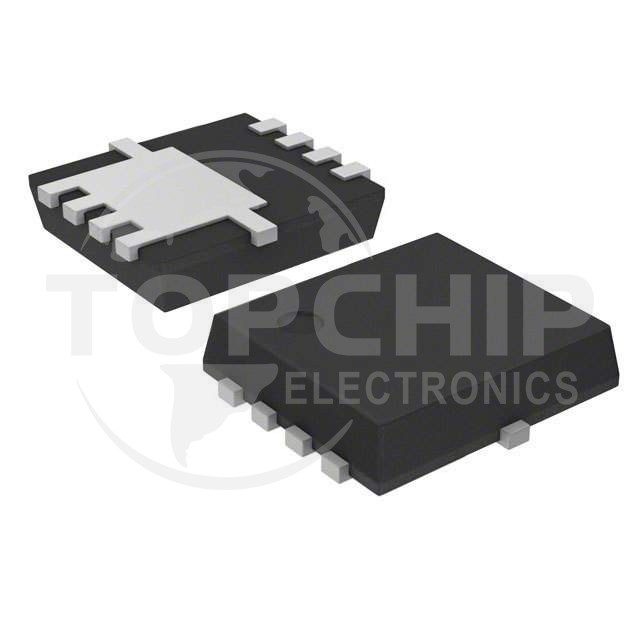

• Supplier Device Package:8-SOP Advance (5x5)
• Package / Case:8-PowerVDFN
