TSM120N06LCS RLG Specifications

• Series:-
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• FET Type:N-Channel
• Technology:MOSFET (Metal Oxide)
• Drain to Source Voltage (Vdss):60 V
• Current - Continuous Drain (Id) @ 25°C:23A (Tc)
• Drive Voltage (Max Rds On, Min Rds On):4.5V, 10V
• Rds On (Max) @ Id, Vgs:12mOhm @ 10A, 10V
• Vgs(th) (Max) @ Id:2.5V @ 250µA
• Gate Charge (Qg) (Max) @ Vgs:37 nC @ 10 V
• Vgs (Max):±20V
• Input Capacitance (Ciss) (Max) @ Vds:2193 pF @ 30 V
• FET Feature:-
• Power Dissipation (Max):12.5W (Tc)
• Operating Temperature:-55°C ~ 150°C (TJ)

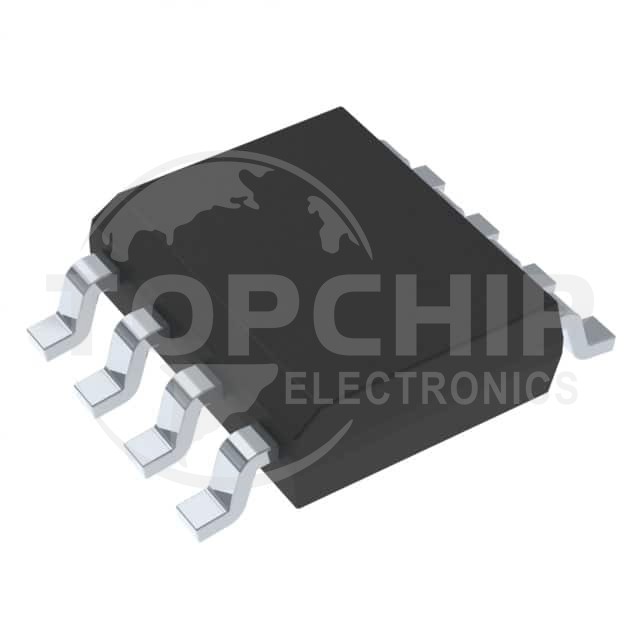

• Mounting Type:Surface Mount
• Supplier Device Package:8-SOP
• Package / Case:8-SOIC (0.154", 3.90mm Width)
