DMN3730UFB4-7B Specifications

• Series:Automotive, AEC-Q101
• Package:Tape & Reel (TR)
• Part Status:Active
• FET Type:N-Channel
• Technology:MOSFET (Metal Oxide)
• Drain to Source Voltage (Vdss):30 V
• Current - Continuous Drain (Id) @ 25°C:750mA (Ta)
• Drive Voltage (Max Rds On, Min Rds On):1.8V, 4.5V
• Rds On (Max) @ Id, Vgs:460mOhm @ 200mA, 4.5V
• Vgs(th) (Max) @ Id:950mV @ 250µA
• Gate Charge (Qg) (Max) @ Vgs:1.6 nC @ 4.5 V
• Vgs (Max):±8V
• Input Capacitance (Ciss) (Max) @ Vds:64.3 pF @ 25 V
• FET Feature:-
• Power Dissipation (Max):470mW (Ta)
• Operating Temperature:-55°C ~ 150°C (TJ)
• Mounting Type:Surface Mount

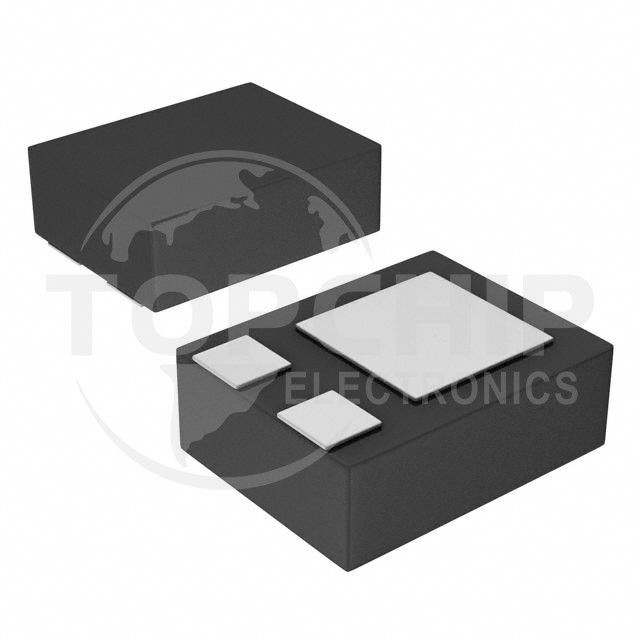

• Supplier Device Package:X2-DFN1006-3
• Package / Case:3-XFDFN
