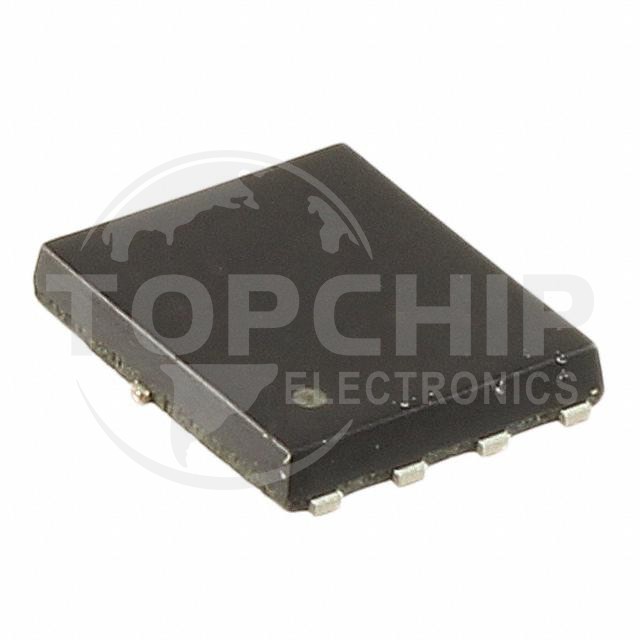

SK8603170L Specifications

• Series:-
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• FET Type:N-Channel
• Technology:MOSFET (Metal Oxide)
• Drain to Source Voltage (Vdss):30 V
• Current - Continuous Drain (Id) @ 25°C:20A (Ta), 59A (Tc)
• Drive Voltage (Max Rds On, Min Rds On):4.5V, 10V
• Rds On (Max) @ Id, Vgs:4.1mOhm @ 14A, 10V
• Vgs(th) (Max) @ Id:3V @ 2.56mA
• Gate Charge (Qg) (Max) @ Vgs:17 nC @ 4.5 V
• Vgs (Max):±20V
• Input Capacitance (Ciss) (Max) @ Vds:2940 pF @ 10 V
• FET Feature:-
• Power Dissipation (Max):2.8W (Ta), 24W (Tc)
• Operating Temperature:150°C (TJ)
• Mounting Type:Surface Mount
• Supplier Device Package:HSO8-F4-B
• Package / Case:8-PowerSMD, Flat Leads
