RQ6E045RPTR Specifications

• Series:-
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• FET Type:P-Channel
• Technology:MOSFET (Metal Oxide)
• Drain to Source Voltage (Vdss):30 V
• Current - Continuous Drain (Id) @ 25°C:4.5A (Ta)
• Drive Voltage (Max Rds On, Min Rds On):4V, 10V
• Rds On (Max) @ Id, Vgs:35mOhm @ 4.5A, 10V
• Vgs(th) (Max) @ Id:2.5V @ 1mA
• Gate Charge (Qg) (Max) @ Vgs:14 nC @ 5 V
• Vgs (Max):±20V
• Input Capacitance (Ciss) (Max) @ Vds:1350 pF @ 10 V
• FET Feature:-
• Power Dissipation (Max):950mW (Ta)
• Operating Temperature:150°C (TJ)
• Mounting Type:Surface Mount

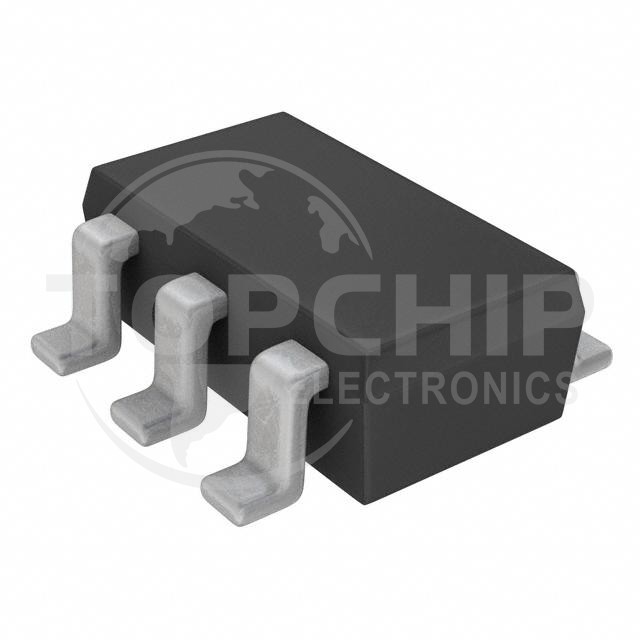

• Supplier Device Package:TSMT6 (SC-95)
• Package / Case:SOT-23-6 Thin, TSOT-23-6
