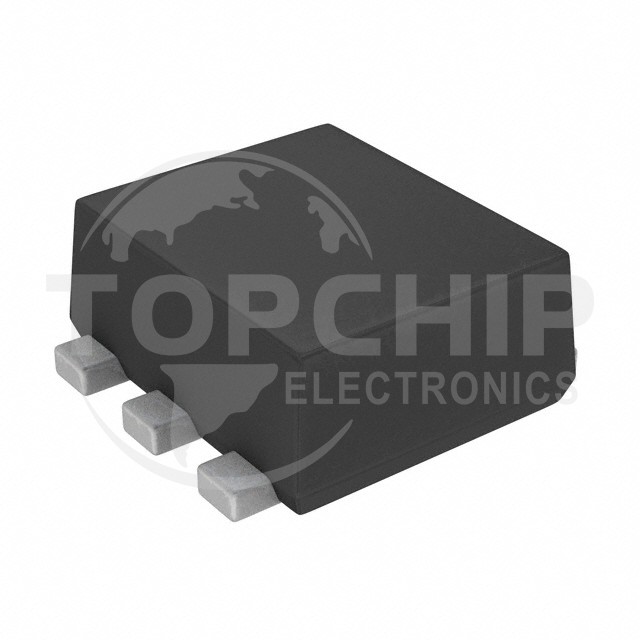

RF6C055BCTCR Specifications

• Series:-
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• FET Type:P-Channel
• Technology:MOSFET (Metal Oxide)
• Drain to Source Voltage (Vdss):20 V
• Current - Continuous Drain (Id) @ 25°C:5.5A (Ta)
• Drive Voltage (Max Rds On, Min Rds On):4.5V
• Rds On (Max) @ Id, Vgs:25.8mOhm @ 5.5A, 4.5V
• Vgs(th) (Max) @ Id:1.2V @ 1mA
• Gate Charge (Qg) (Max) @ Vgs:15.2 nC @ 4.5 V
• Vgs (Max):±8V
• Input Capacitance (Ciss) (Max) @ Vds:1080 pF @ 10 V
• FET Feature:-
• Power Dissipation (Max):1W (Tc)
• Operating Temperature:-55°C ~ 150°C (TJ)
• Mounting Type:Surface Mount
• Supplier Device Package:TUMT6
• Package / Case:6-SMD, Flat Leads
