NVD5C454NT4G Specifications

• Series:Automotive, AEC-Q101
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• FET Type:N-Channel
• Technology:MOSFET (Metal Oxide)
• Drain to Source Voltage (Vdss):40 V
• Current - Continuous Drain (Id) @ 25°C:19A (Ta), 82A (Tc)
• Drive Voltage (Max Rds On, Min Rds On):10V
• Rds On (Max) @ Id, Vgs:4.2mOhm @ 40A, 10V
• Vgs(th) (Max) @ Id:4V @ 70µA
• Gate Charge (Qg) (Max) @ Vgs:32 nC @ 10 V
• Vgs (Max):±20V
• Input Capacitance (Ciss) (Max) @ Vds:1900 pF @ 25 V
• FET Feature:-
• Power Dissipation (Max):3.1W (Ta), 56W (Tc)
• Operating Temperature:-55°C ~ 175°C (TJ)
• Mounting Type:Surface Mount

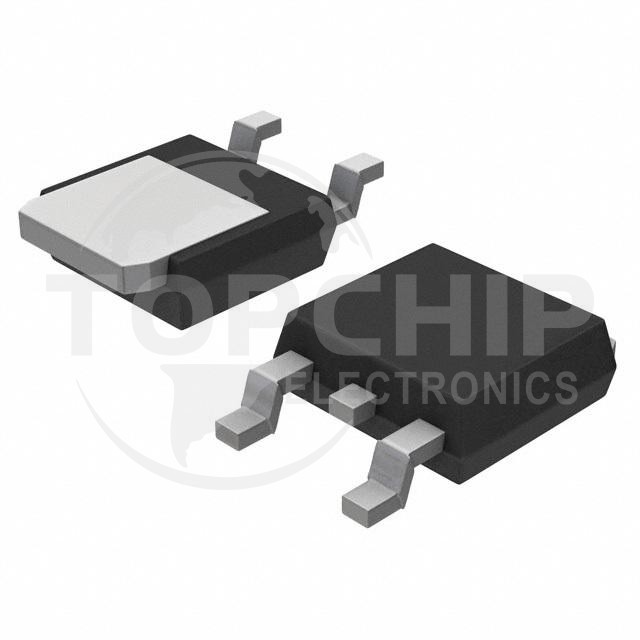

• Supplier Device Package:DPAK
• Package / Case:TO-252-3, DPak (2 Leads + Tab), SC-63
