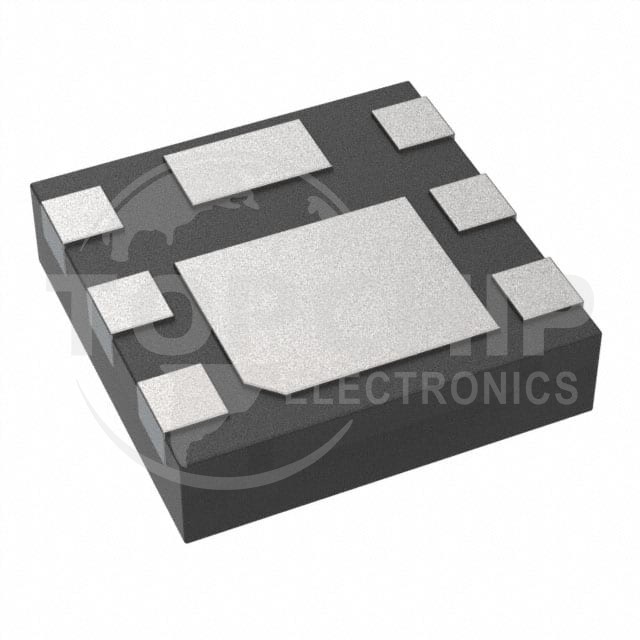

DMTH4008LFDFW-7 Specifications

• Series:Automotive, AEC-Q101
• Package:Tape & Reel (TR)
• Part Status:Active
• FET Type:N-Channel
• Technology:MOSFET (Metal Oxide)
• Drain to Source Voltage (Vdss):40 V
• Current - Continuous Drain (Id) @ 25°C:11.6A (Ta)
• Drive Voltage (Max Rds On, Min Rds On):4.5V, 10V
• Rds On (Max) @ Id, Vgs:11.5mOhm @ 10A, 10V
• Vgs(th) (Max) @ Id:3V @ 250µA
• Gate Charge (Qg) (Max) @ Vgs:14.2 nC @ 10 V
• Vgs (Max):±20V
• Input Capacitance (Ciss) (Max) @ Vds:1030 pF @ 20 V
• FET Feature:-
• Power Dissipation (Max):990mW (Ta)
• Operating Temperature:-55°C ~ 175°C (TJ)
• Mounting Type:Surface Mount
• Supplier Device Package:U-DFN2020-6
• Package / Case:6-UDFN Exposed Pad
