RTF015N03TL Specifications

• Series:-
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Not For New Designs
• FET Type:N-Channel
• Technology:MOSFET (Metal Oxide)
• Drain to Source Voltage (Vdss):30 V
• Current - Continuous Drain (Id) @ 25°C:1.5A (Ta)
• Drive Voltage (Max Rds On, Min Rds On):2.5V, 4.5V
• Rds On (Max) @ Id, Vgs:240mOhm @ 1.5A, 4.5V
• Vgs(th) (Max) @ Id:1.5V @ 1mA
• Gate Charge (Qg) (Max) @ Vgs:2.2 nC @ 4.5 V
• Vgs (Max):±12V
• Input Capacitance (Ciss) (Max) @ Vds:80 pF @ 10 V
• FET Feature:-
• Power Dissipation (Max):320mW (Ta)
• Operating Temperature:150°C (TJ)
• Mounting Type:Surface Mount

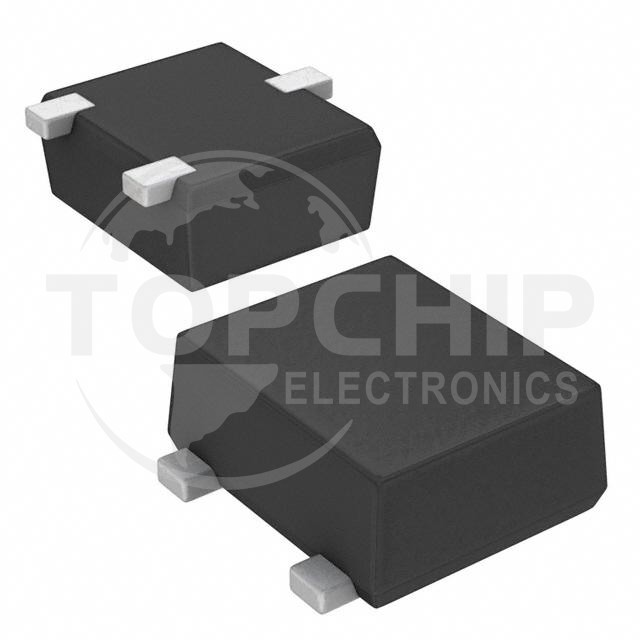

• Supplier Device Package:TUMT3
• Package / Case:3-SMD, Flat Lead
