ZXMN10A08GTA Specifications

• Series:-
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• FET Type:N-Channel
• Technology:MOSFET (Metal Oxide)
• Drain to Source Voltage (Vdss):100 V
• Current - Continuous Drain (Id) @ 25°C:2A (Ta)
• Drive Voltage (Max Rds On, Min Rds On):6V, 10V
• Rds On (Max) @ Id, Vgs:250mOhm @ 3.2A, 10V
• Vgs(th) (Max) @ Id:2V @ 250µA
• Gate Charge (Qg) (Max) @ Vgs:7.7 nC @ 10 V
• Vgs (Max):±20V
• Input Capacitance (Ciss) (Max) @ Vds:405 pF @ 50 V
• FET Feature:-
• Power Dissipation (Max):2W (Ta)
• Operating Temperature:-55°C ~ 150°C (TJ)
• Mounting Type:Surface Mount

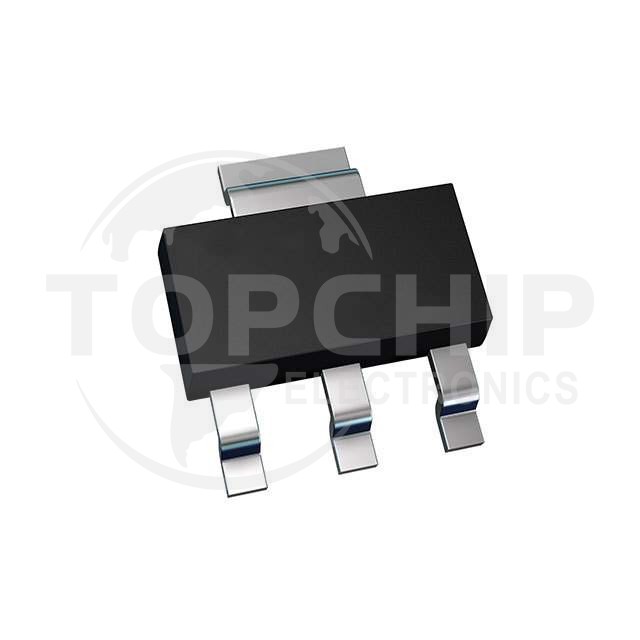

• Supplier Device Package:SOT-223
• Package / Case:TO-261-4, TO-261AA
