IAUC41N06S5L100ATMA1 Specifications

• Series:OptiMOS™
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• FET Type:N-Channel
• Technology:MOSFET (Metal Oxide)
• Drain to Source Voltage (Vdss):60 V
• Current - Continuous Drain (Id) @ 25°C:41A (Tj)
• Drive Voltage (Max Rds On, Min Rds On):-
• Rds On (Max) @ Id, Vgs:10mOhm @ 20A, 10V
• Vgs(th) (Max) @ Id:2.2V @ 13µA
• Gate Charge (Qg) (Max) @ Vgs:16.4 nC @ 10 V
• Vgs (Max):±16V
• Input Capacitance (Ciss) (Max) @ Vds:1.205 nF @ 30 V
• FET Feature:-
• Power Dissipation (Max):42W (Tc)
• Operating Temperature:-55°C ~ 175°C (TJ)
• Mounting Type:Surface Mount

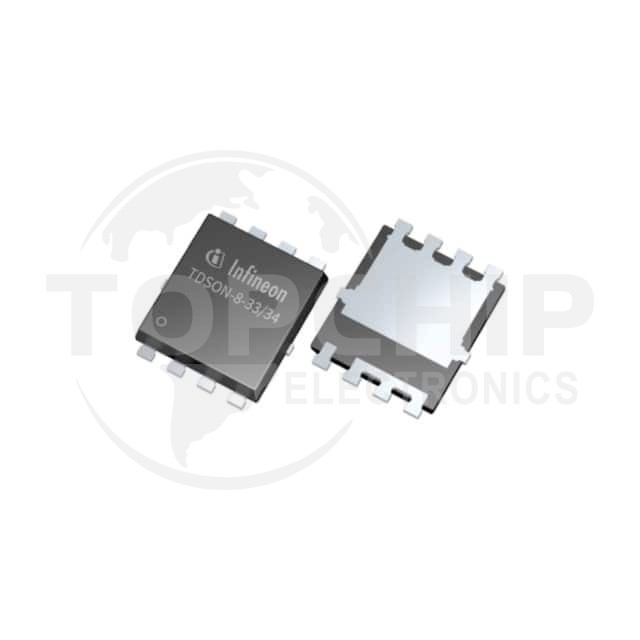

• Supplier Device Package:PG-TDSON-8-33
• Package / Case:8-PowerTDFN
