PMZB370UNE,315 Specifications

• Series:-
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Obsolete
• FET Type:N-Channel
• Technology:MOSFET (Metal Oxide)
• Drain to Source Voltage (Vdss):30 V
• Current - Continuous Drain (Id) @ 25°C:900mA (Ta)
• Drive Voltage (Max Rds On, Min Rds On):1.8V, 4.5V
• Rds On (Max) @ Id, Vgs:490mOhm @ 500mA, 4.5V
• Vgs(th) (Max) @ Id:1.05V @ 250µA
• Gate Charge (Qg) (Max) @ Vgs:1.16 nC @ 15 V
• Vgs (Max):±8V
• Input Capacitance (Ciss) (Max) @ Vds:78 pF @ 25 V
• FET Feature:-
• Power Dissipation (Max):360mW (Ta), 2.7W (Tc)
• Operating Temperature:-55°C ~ 150°C (TJ)
• Mounting Type:Surface Mount

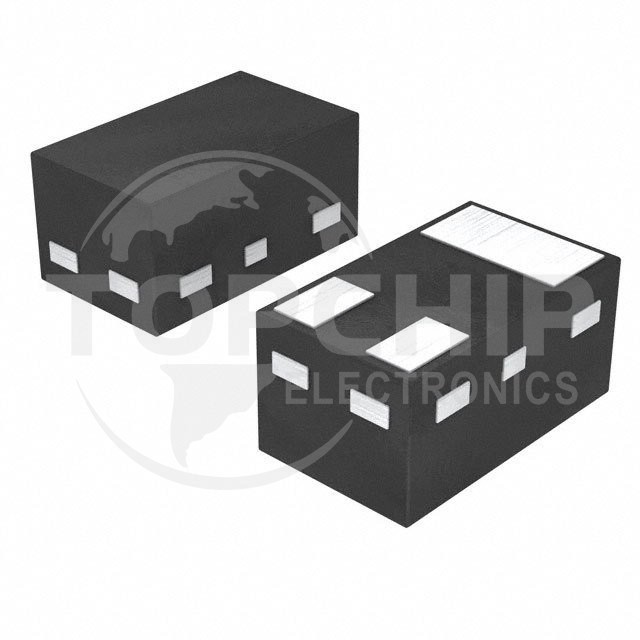

• Supplier Device Package:DFN1006B-3
• Package / Case:3-XFDFN
