SIR626DP-T1-RE3 Specifications

• Series:TrenchFET® Gen IV
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• FET Type:N-Channel
• Technology:MOSFET (Metal Oxide)
• Drain to Source Voltage (Vdss):60 V
• Current - Continuous Drain (Id) @ 25°C:100A (Tc)
• Drive Voltage (Max Rds On, Min Rds On):6V, 10V
• Rds On (Max) @ Id, Vgs:1.7mOhm @ 20A, 10V
• Vgs(th) (Max) @ Id:3.4V @ 250µA
• Gate Charge (Qg) (Max) @ Vgs:78 nC @ 7.5 V
• Vgs (Max):±20V
• Input Capacitance (Ciss) (Max) @ Vds:5130 pF @ 30 V
• FET Feature:-
• Power Dissipation (Max):104W (Tc)
• Operating Temperature:-55°C ~ 150°C (TJ)
• Mounting Type:Surface Mount

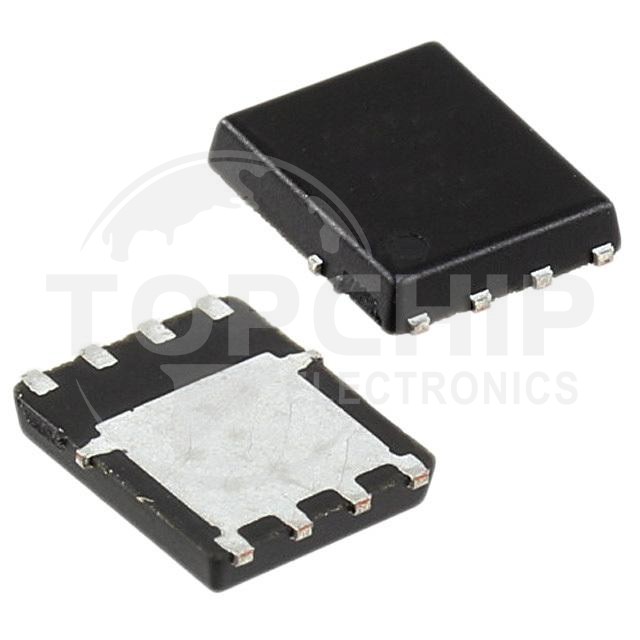

• Supplier Device Package:PowerPAK® SO-8
• Package / Case:PowerPAK® SO-8
