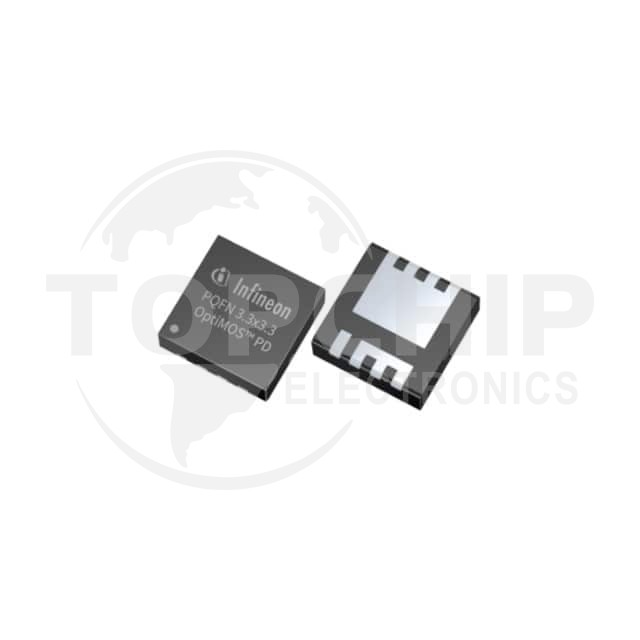

BSC040N10NS5SCATMA1 Specifications

• Series:OptiMOS™ 5
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• FET Type:N-Channel
• Technology:MOSFET (Metal Oxide)
• Drain to Source Voltage (Vdss):100 V
• Current - Continuous Drain (Id) @ 25°C:140A (Tc)
• Drive Voltage (Max Rds On, Min Rds On):6V, 10V
• Rds On (Max) @ Id, Vgs:4mOhm @ 50A, 10V
• Vgs(th) (Max) @ Id:3.8V @ 95µA
• Gate Charge (Qg) (Max) @ Vgs:72 nC @ 10 V
• Vgs (Max):±20V
• Input Capacitance (Ciss) (Max) @ Vds:5300 pF @ 50 V
• FET Feature:-
• Power Dissipation (Max):3W (Ta), 167W (Tc)
• Operating Temperature:-55°C ~ 175°C (TJ)
• Mounting Type:Surface Mount
• Supplier Device Package:PG-WSON-8-2
• Package / Case:8-PowerWDFN
