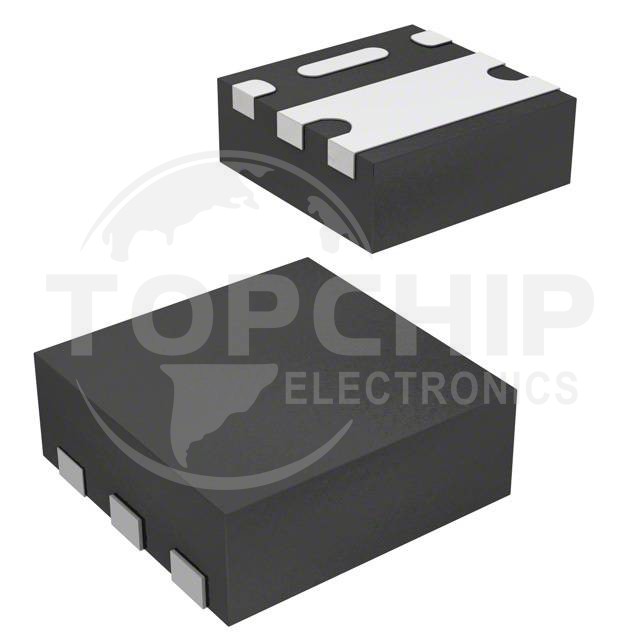

SIA441DJ-T1-GE3 Specifications

• Series:TrenchFET®
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• FET Type:P-Channel
• Technology:MOSFET (Metal Oxide)
• Drain to Source Voltage (Vdss):40 V
• Current - Continuous Drain (Id) @ 25°C:12A (Tc)
• Drive Voltage (Max Rds On, Min Rds On):4.5V, 10V
• Rds On (Max) @ Id, Vgs:47mOhm @ 4.4A, 10V
• Vgs(th) (Max) @ Id:2.2V @ 250µA
• Gate Charge (Qg) (Max) @ Vgs:35 nC @ 10 V
• Vgs (Max):±20V
• Input Capacitance (Ciss) (Max) @ Vds:890 pF @ 20 V
• FET Feature:-
• Power Dissipation (Max):19W (Tc)
• Operating Temperature:-55°C ~ 150°C (TJ)
• Mounting Type:Surface Mount
• Supplier Device Package:PowerPAK® SC-70-6 Single
• Package / Case:PowerPAK® SC-70-6
