SIS126DN-T1-GE3 Specifications

• Series:TrenchFET® Gen IV
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• FET Type:N-Channel
• Technology:MOSFET (Metal Oxide)
• Drain to Source Voltage (Vdss):80 V
• Current - Continuous Drain (Id) @ 25°C:12A (Ta), 45.1A (Tc)
• Drive Voltage (Max Rds On, Min Rds On):7.5V, 10V
• Rds On (Max) @ Id, Vgs:10.2mOhm @ 10A, 10V
• Vgs(th) (Max) @ Id:3.5V @ 250µA
• Gate Charge (Qg) (Max) @ Vgs:32 nC @ 10 V
• Vgs (Max):±20V
• Input Capacitance (Ciss) (Max) @ Vds:1402 pF @ 40 V
• FET Feature:-
• Power Dissipation (Max):3.7W (Ta), 52W (Tc)
• Operating Temperature:-55°C ~ 150°C (TJ)
• Mounting Type:Surface Mount

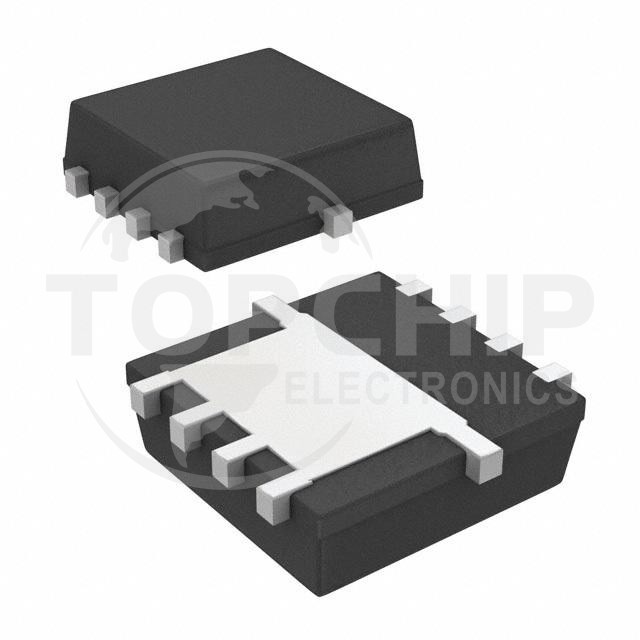

• Supplier Device Package:PowerPAK® 1212-8
• Package / Case:PowerPAK® 1212-8
