DMP32D9UFZ-7B Specifications

• Series:-
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• FET Type:P-Channel
• Technology:MOSFET (Metal Oxide)
• Drain to Source Voltage (Vdss):30 V
• Current - Continuous Drain (Id) @ 25°C:200mA (Ta)
• Drive Voltage (Max Rds On, Min Rds On):1.2V, 10V
• Rds On (Max) @ Id, Vgs:5Ohm @ 100mA, 4.5V
• Vgs(th) (Max) @ Id:1V @ 250µA
• Gate Charge (Qg) (Max) @ Vgs:0.35 nC @ 4.5 V
• Vgs (Max):±10V
• Input Capacitance (Ciss) (Max) @ Vds:22.5 pF @ 15 V
• FET Feature:-
• Power Dissipation (Max):390mW (Ta)
• Operating Temperature:-55°C ~ 150°C (TJ)
• Mounting Type:Surface Mount

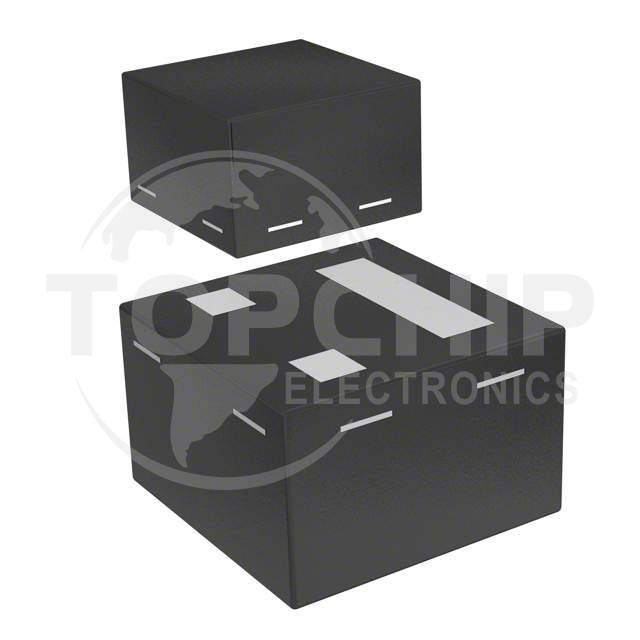

• Supplier Device Package:X2-DFN0606-3
• Package / Case:3-XFDFN
