IRFSL7787PBF Specifications

• Series:HEXFET®, StrongIRFET™
• Package:Tube
• Part Status:Active
• FET Type:N-Channel
• Technology:MOSFET (Metal Oxide)
• Drain to Source Voltage (Vdss):75 V
• Current - Continuous Drain (Id) @ 25°C:76A (Tc)
• Drive Voltage (Max Rds On, Min Rds On):6V, 10V
• Rds On (Max) @ Id, Vgs:8.4mOhm @ 46A, 10V
• Vgs(th) (Max) @ Id:3.7V @ 100µA
• Gate Charge (Qg) (Max) @ Vgs:109 nC @ 10 V
• Vgs (Max):±20V
• Input Capacitance (Ciss) (Max) @ Vds:4020 pF @ 25 V
• FET Feature:-
• Power Dissipation (Max):125W (Tc)
• Operating Temperature:-55°C ~ 175°C (TJ)
• Mounting Type:Through Hole
• Supplier Device Package:TO-262

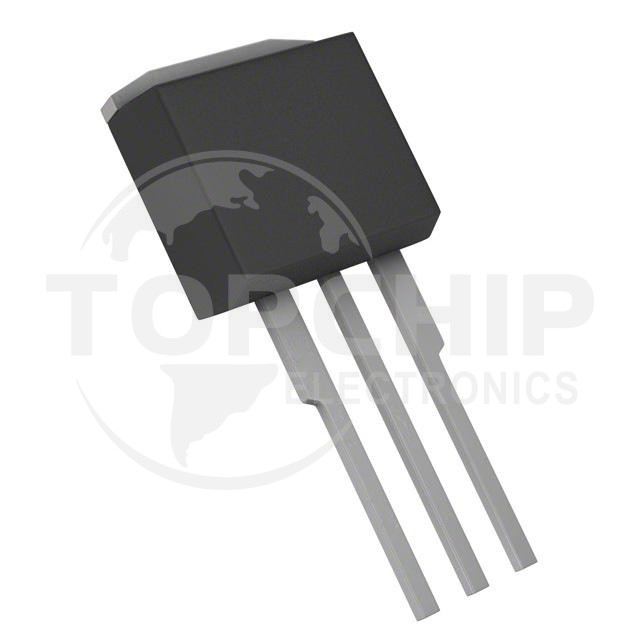

• Package / Case:TO-262-3 Long Leads, I²Pak, TO-262AA
