TK290P65Y,RQ Specifications

• Series:DTMOSV
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• FET Type:N-Channel
• Technology:MOSFET (Metal Oxide)
• Drain to Source Voltage (Vdss):650 V
• Current - Continuous Drain (Id) @ 25°C:11.5A (Tc)
• Drive Voltage (Max Rds On, Min Rds On):10V
• Rds On (Max) @ Id, Vgs:290mOhm @ 5.8A, 10V
• Vgs(th) (Max) @ Id:4V @ 450µA
• Gate Charge (Qg) (Max) @ Vgs:25 nC @ 10 V
• Vgs (Max):±30V
• Input Capacitance (Ciss) (Max) @ Vds:730 pF @ 300 V
• FET Feature:-
• Power Dissipation (Max):100W (Tc)
• Operating Temperature:150°C (TJ)
• Mounting Type:Surface Mount

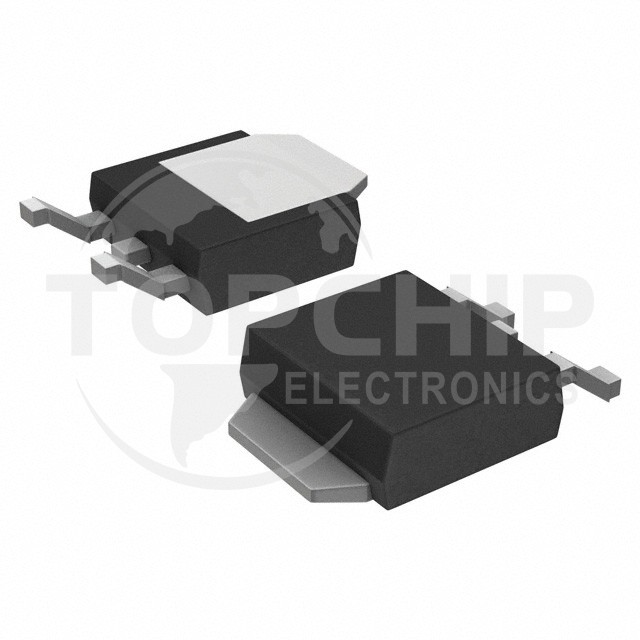

• Supplier Device Package:DPAK
• Package / Case:TO-252-3, DPak (2 Leads + Tab), SC-63
