IRF7480MTRPBF Specifications

• Series:HEXFET®, StrongIRFET™
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• FET Type:N-Channel
• Technology:MOSFET (Metal Oxide)
• Drain to Source Voltage (Vdss):40 V
• Current - Continuous Drain (Id) @ 25°C:217A (Tc)
• Drive Voltage (Max Rds On, Min Rds On):6V, 10V
• Rds On (Max) @ Id, Vgs:1.2mOhm @ 132A, 10V
• Vgs(th) (Max) @ Id:3.9V @ 150µA
• Gate Charge (Qg) (Max) @ Vgs:185 nC @ 10 V
• Vgs (Max):±20V
• Input Capacitance (Ciss) (Max) @ Vds:6680 pF @ 25 V
• FET Feature:-
• Power Dissipation (Max):96W (Tc)
• Operating Temperature:-55°C ~ 150°C (TJ)
• Mounting Type:Surface Mount

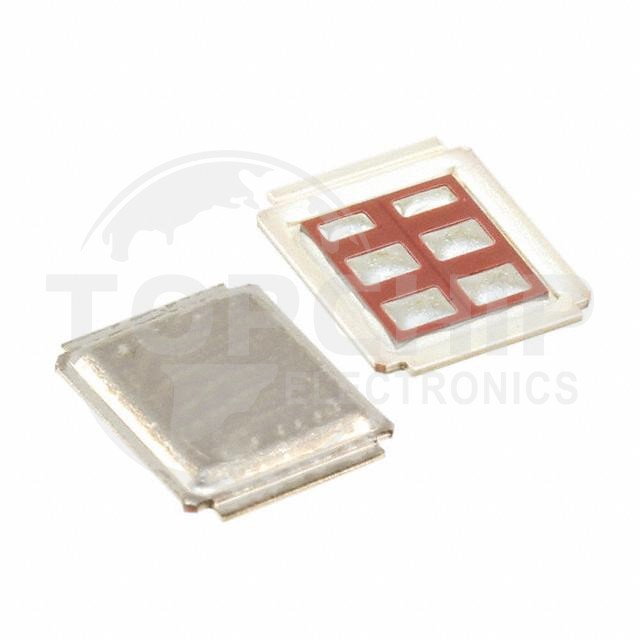

• Supplier Device Package:DirectFET™ Isometric ME
• Package / Case:DirectFET™ Isometric ME
