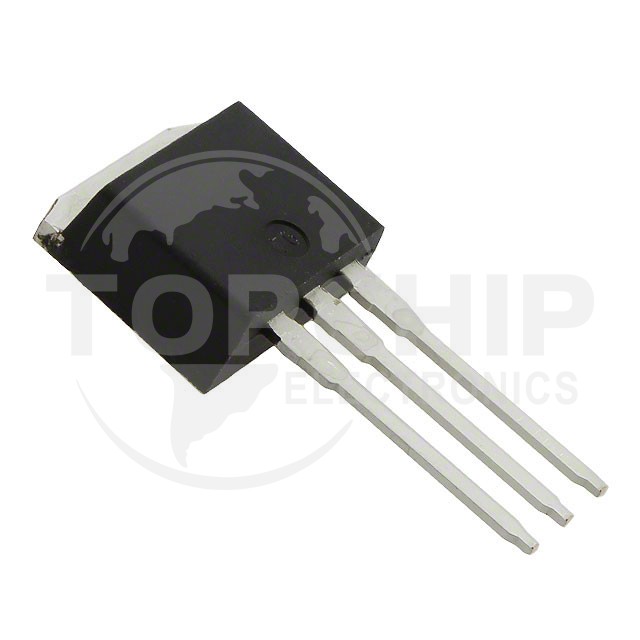

IRF840LCLPBF Specifications

• Series:-
• Package:Tube
• Part Status:Active
• FET Type:N-Channel
• Technology:MOSFET (Metal Oxide)
• Drain to Source Voltage (Vdss):500 V
• Current - Continuous Drain (Id) @ 25°C:8A (Tc)
• Drive Voltage (Max Rds On, Min Rds On):10V
• Rds On (Max) @ Id, Vgs:850mOhm @ 4.8A, 10V
• Vgs(th) (Max) @ Id:4V @ 250µA
• Gate Charge (Qg) (Max) @ Vgs:39 nC @ 10 V
• Vgs (Max):±30V
• Input Capacitance (Ciss) (Max) @ Vds:1100 pF @ 25 V
• FET Feature:-
• Power Dissipation (Max):3.1W (Ta), 125W (Tc)
• Operating Temperature:-55°C ~ 150°C (TJ)
• Mounting Type:Through Hole
• Supplier Device Package:I2PAK
• Package / Case:TO-262-3 Long Leads, I²Pak, TO-262AA
