SQJ463EP-T1_GE3 Specifications

• Series:Automotive, AEC-Q101, TrenchFET®
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• FET Type:P-Channel
• Technology:MOSFET (Metal Oxide)
• Drain to Source Voltage (Vdss):40 V
• Current - Continuous Drain (Id) @ 25°C:30A (Tc)
• Drive Voltage (Max Rds On, Min Rds On):4.5V, 10V
• Rds On (Max) @ Id, Vgs:10mOhm @ 18A, 10V
• Vgs(th) (Max) @ Id:2.5V @ 250µA
• Gate Charge (Qg) (Max) @ Vgs:150 nC @ 10 V
• Vgs (Max):±20V
• Input Capacitance (Ciss) (Max) @ Vds:5875 pF @ 20 V
• FET Feature:-
• Power Dissipation (Max):83W (Tc)
• Operating Temperature:-55°C ~ 175°C (TJ)
• Mounting Type:Surface Mount

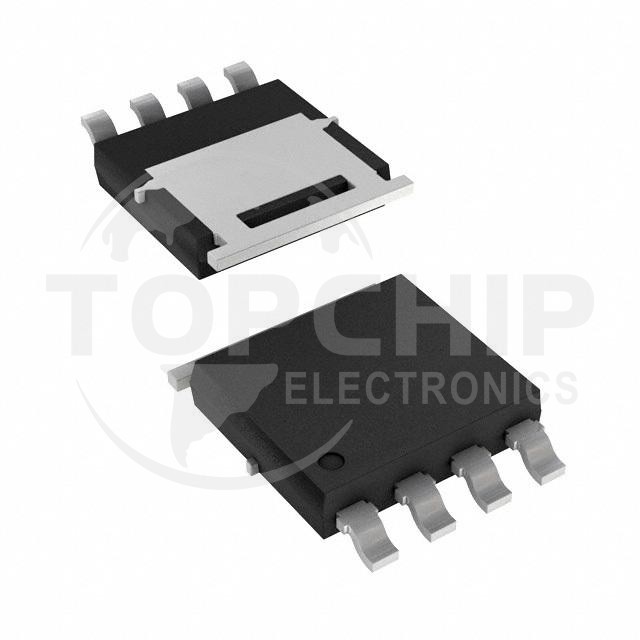

• Supplier Device Package:PowerPAK® SO-8
• Package / Case:PowerPAK® SO-8
