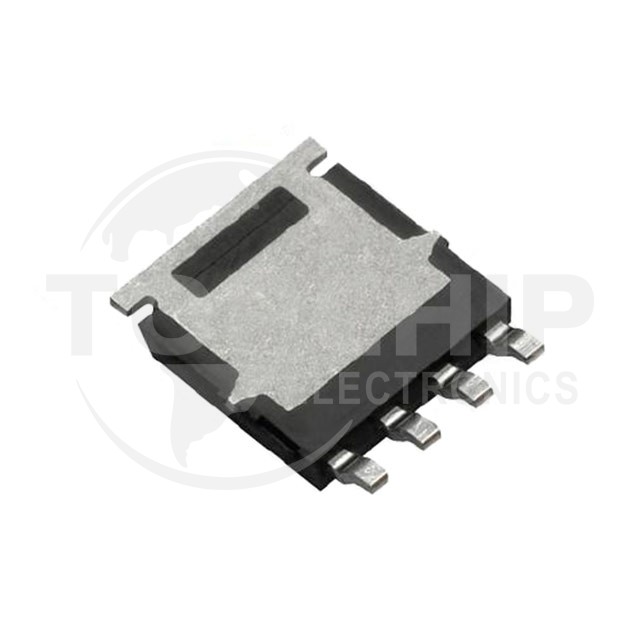

SQJ486EP-T1_GE3 Specifications

• Series:Automotive, AEC-Q101, TrenchFET®
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• FET Type:N-Channel
• Technology:MOSFET (Metal Oxide)
• Drain to Source Voltage (Vdss):75 V
• Current - Continuous Drain (Id) @ 25°C:30A (Tc)
• Drive Voltage (Max Rds On, Min Rds On):4.5V, 10V
• Rds On (Max) @ Id, Vgs:26mOhm @ 51A, 10V
• Vgs(th) (Max) @ Id:2.1V @ 250µA
• Gate Charge (Qg) (Max) @ Vgs:34 nC @ 10 V
• Vgs (Max):±20V
• Input Capacitance (Ciss) (Max) @ Vds:1386 pF @ 15 V
• FET Feature:-
• Power Dissipation (Max):56W (Tc)
• Operating Temperature:-55°C ~ 175°C (TJ)
• Mounting Type:Surface Mount
• Supplier Device Package:PowerPAK® SO-8
• Package / Case:8-PowerTDFN
