IPBE65R050CFD7AATMA1 Specifications

• Series:Automotive, AEC-Q101, CoolMOS™ CFD7A
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• FET Type:N-Channel
• Technology:MOSFET (Metal Oxide)
• Drain to Source Voltage (Vdss):650 V
• Current - Continuous Drain (Id) @ 25°C:45A (Tc)
• Drive Voltage (Max Rds On, Min Rds On):10V
• Rds On (Max) @ Id, Vgs:50mOhm @ 24.8A, 10V
• Vgs(th) (Max) @ Id:4.5V @ 1.24mA
• Gate Charge (Qg) (Max) @ Vgs:102 nC @ 10 V
• Vgs (Max):±20V
• Input Capacitance (Ciss) (Max) @ Vds:4975 pF @ 400 V
• FET Feature:-
• Power Dissipation (Max):227W (Tc)
• Operating Temperature:-40°C ~ 150°C (TJ)
• Mounting Type:Surface Mount
• Supplier Device Package:PG-TO263-7-3-10

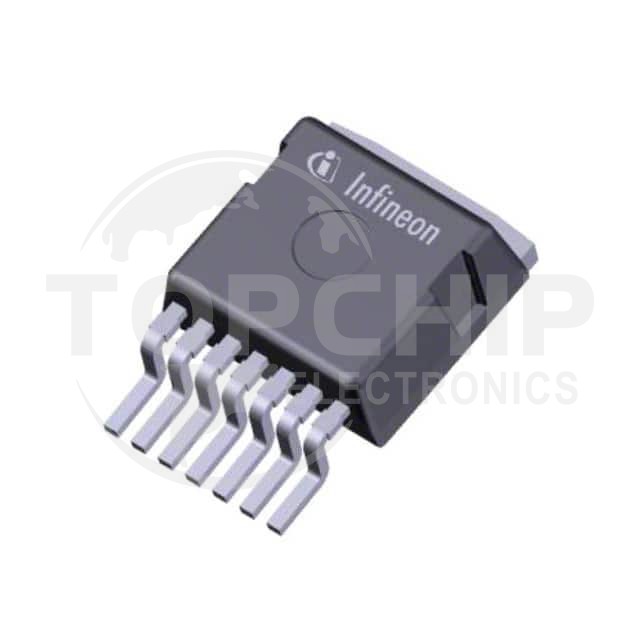

• Package / Case:TO-263-7, D²Pak (6 Leads + Tab), TO-263CB
