IRFSL4620PBF Specifications

• Series:HEXFET®
• Package:Tube
• Part Status:Obsolete
• FET Type:N-Channel
• Technology:MOSFET (Metal Oxide)
• Drain to Source Voltage (Vdss):200 V
• Current - Continuous Drain (Id) @ 25°C:24A (Tc)
• Drive Voltage (Max Rds On, Min Rds On):10V
• Rds On (Max) @ Id, Vgs:77.5mOhm @ 15A, 10V
• Vgs(th) (Max) @ Id:5V @ 100µA
• Gate Charge (Qg) (Max) @ Vgs:38 nC @ 10 V
• Vgs (Max):±20V
• Input Capacitance (Ciss) (Max) @ Vds:1.71 pF @ 50 V
• FET Feature:-
• Power Dissipation (Max):144W (Tc)
• Operating Temperature:-55°C ~ 175°C (TJ)
• Mounting Type:Through Hole

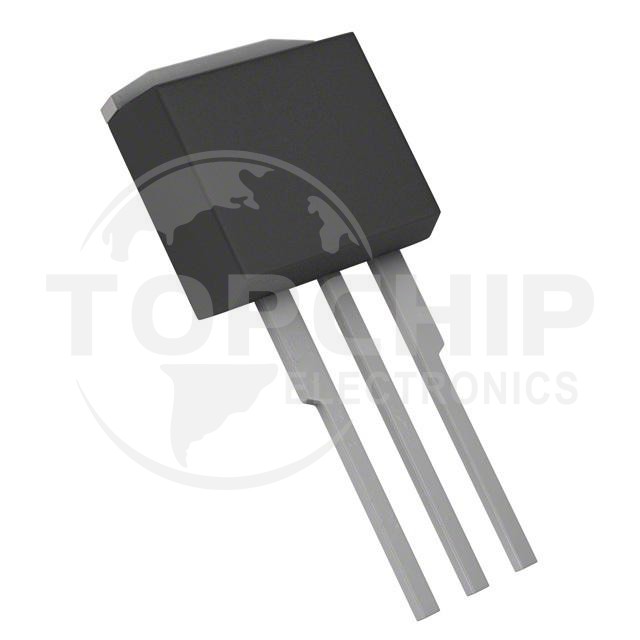

• Supplier Device Package:TO-262
• Package / Case:TO-262-3 Long Leads, I²Pak, TO-262AA
