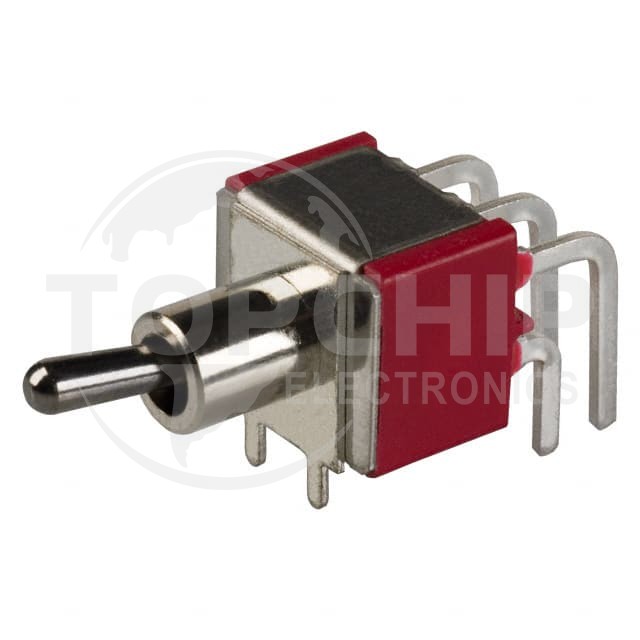

100DP1T2B4M6QE

Image is for reference, please contact us to get the real picture

Manufacturer Part
100DP1T2B4M6QE
Manufacturer
E-Switch
Description
SWITCH TOGGLE DPDT 5A 120V
Category
Switches
Family
Toggle Switches
Series
-
In Stock
5892
Datasheets
-

100DP1T2B4M6QE Specifications

  • Series:100
  • Package:Bulk
  • Part Status:Active
  • Mounting Type:Through Hole, Right Angle
  • Circuit:DPDT
  • Switch Function:On-On
  • Current Rating (Amps):5A (AC/DC)
  • Voltage Rating - AC:120 V
  • Voltage Rating - DC:28 V
  • Actuator Type:Standard Round
  • Actuator Length:6.46mm
  • Illumination:Non-Illuminated
  • Illumination Type, Color:-
  • Illumination Voltage (Nominal):-
  • Termination Style:PC Pin
  • Panel Cutout Dimensions:-
  • Bushing Thread:Unthreaded
  • Ingress Protection:-
  • Features:Epoxy Sealed Terminals
  • Operating Temperature:-30°C ~ 85°C
