M2022LL1W02

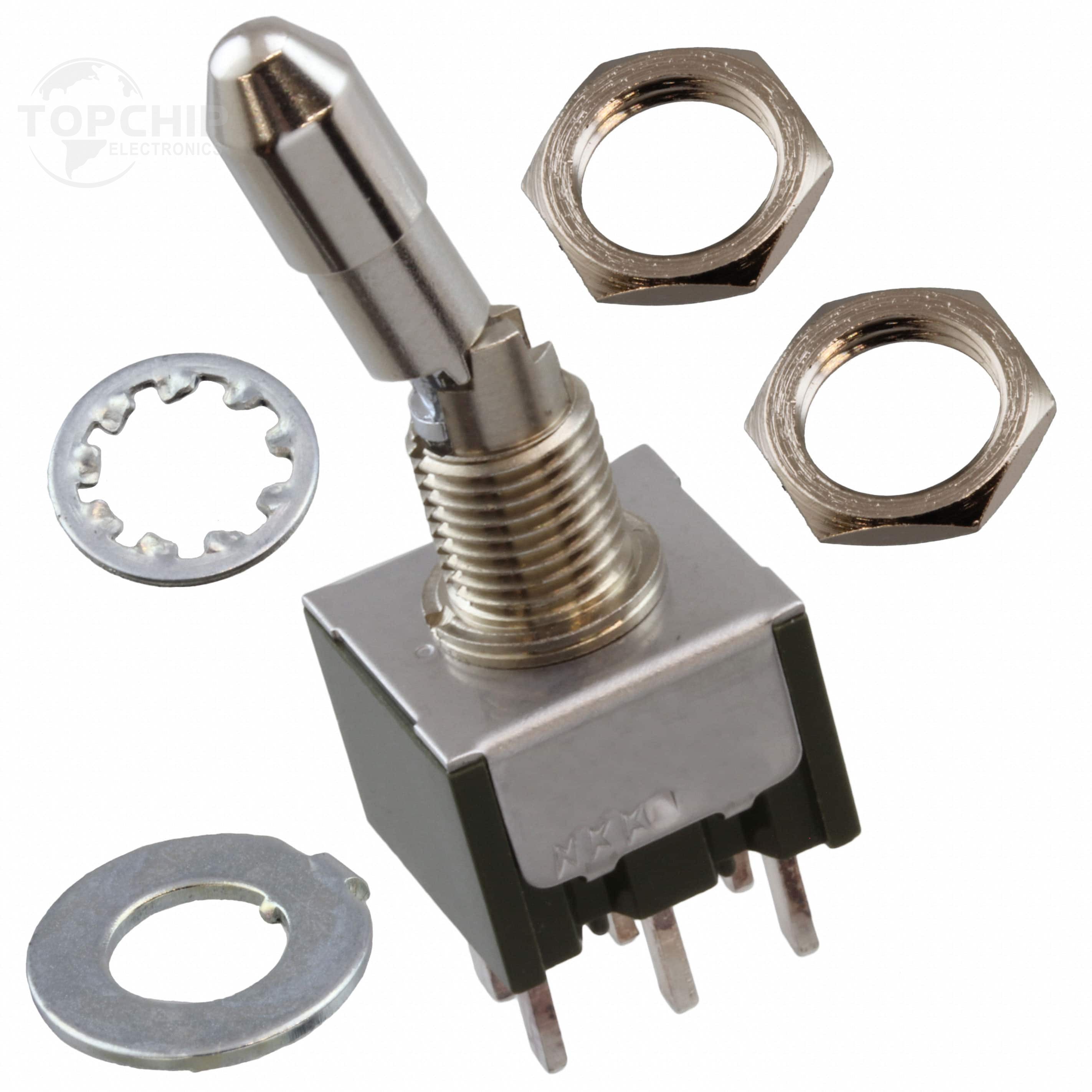

Image is for reference, please contact us to get the real picture

Manufacturer Part
M2022LL1W02
Manufacturer
NKK Switches
Description
SWITCH TOGGLE DPDT 6A 125V
Category
Switches
Family
Toggle Switches
Series
-
In Stock
40
Datasheets
-

M2022LL1W02 Specifications

  • Series:M
  • Package:Bulk
  • Part Status:Active
  • Mounting Type:Panel Mount
  • Circuit:DPDT
  • Switch Function:On-On
  • Current Rating (Amps):6A (AC), 4A (DC)
  • Voltage Rating - AC:125 V
  • Voltage Rating - DC:30 V
  • Actuator Type:Locking Lever
  • Actuator Length:16.50mm
  • Illumination:Non-Illuminated
  • Illumination Type, Color:-
  • Illumination Voltage (Nominal):-
  • Termination Style:Quick Connect - 0.062" (1.5mm)
  • Panel Cutout Dimensions:Circular - 6.50mm Dia
  • Bushing Thread:1/4-40
  • Ingress Protection:-
  • Features:Epoxy Sealed Terminals
  • Operating Temperature:-30°C ~ 85°C
