M2026ES1W01

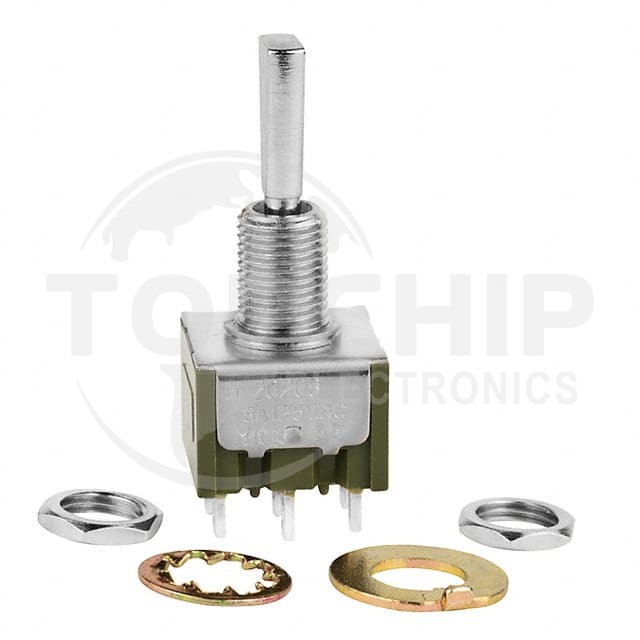

Image is for reference, please contact us to get the real picture

Manufacturer Part
M2026ES1W01
Manufacturer
NKK Switches
Description
SWITCH TOGGLE SP3T 6A 125V
Category
Switches
Family
Toggle Switches
Series
-
In Stock
29
Datasheets
-

M2026ES1W01 Specifications

  • Series:M
  • Package:Bulk
  • Part Status:Active
  • Mounting Type:Panel Mount
  • Circuit:SP3T
  • Switch Function:Mom-On-Mom
  • Current Rating (Amps):6A (AC), 3A (DC)
  • Voltage Rating - AC:125 V
  • Voltage Rating - DC:30 V
  • Actuator Type:Flatted
  • Actuator Length:11.40mm
  • Illumination:Non-Illuminated
  • Illumination Type, Color:-
  • Illumination Voltage (Nominal):-
  • Termination Style:Solder Lug
  • Panel Cutout Dimensions:Circular - 6.50mm Dia
  • Bushing Thread:1/4-40
  • Ingress Protection:-
  • Features:Jumper needed to achieve triple throw
  • Operating Temperature:-30°C ~ 85°C
