M2022S2A1W03

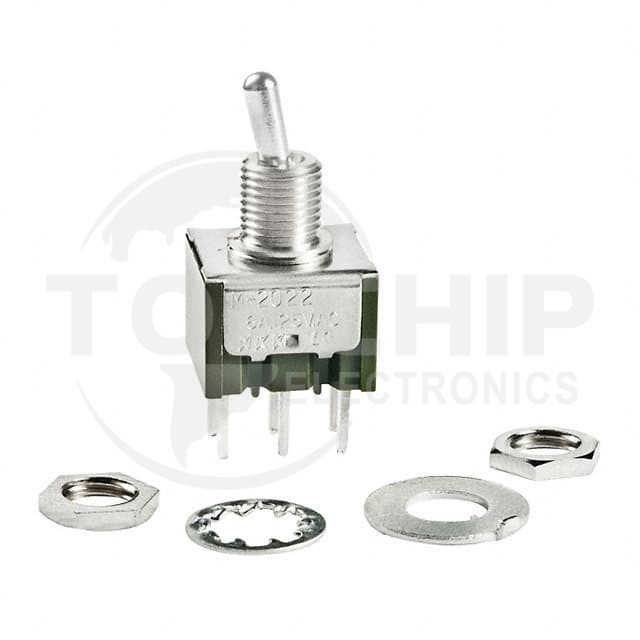

Image is for reference, please contact us to get the real picture

Manufacturer Part
M2022S2A1W03
Manufacturer
NKK Switches
Description
SWITCH TOGGLE DPDT 6A 125V
Category
Switches
Family
Toggle Switches
Series
-
In Stock
35
Datasheets
-

M2022S2A1W03 Specifications

  • Series:M
  • Package:Bulk
  • Part Status:Active
  • Mounting Type:Panel Mount
  • Circuit:DPDT
  • Switch Function:On-On
  • Current Rating (Amps):6A (AC), 4A (DC)
  • Voltage Rating - AC:125 V
  • Voltage Rating - DC:30 V
  • Actuator Type:Standard Round
  • Actuator Length:6.86mm
  • Illumination:Non-Illuminated
  • Illumination Type, Color:-
  • Illumination Voltage (Nominal):-
  • Termination Style:PC Pin
  • Panel Cutout Dimensions:Circular - 6.50mm Dia
  • Bushing Thread:1/4-40
  • Ingress Protection:-
  • Features:Epoxy Sealed Terminals
  • Operating Temperature:-30°C ~ 85°C
