M2015ES1W03

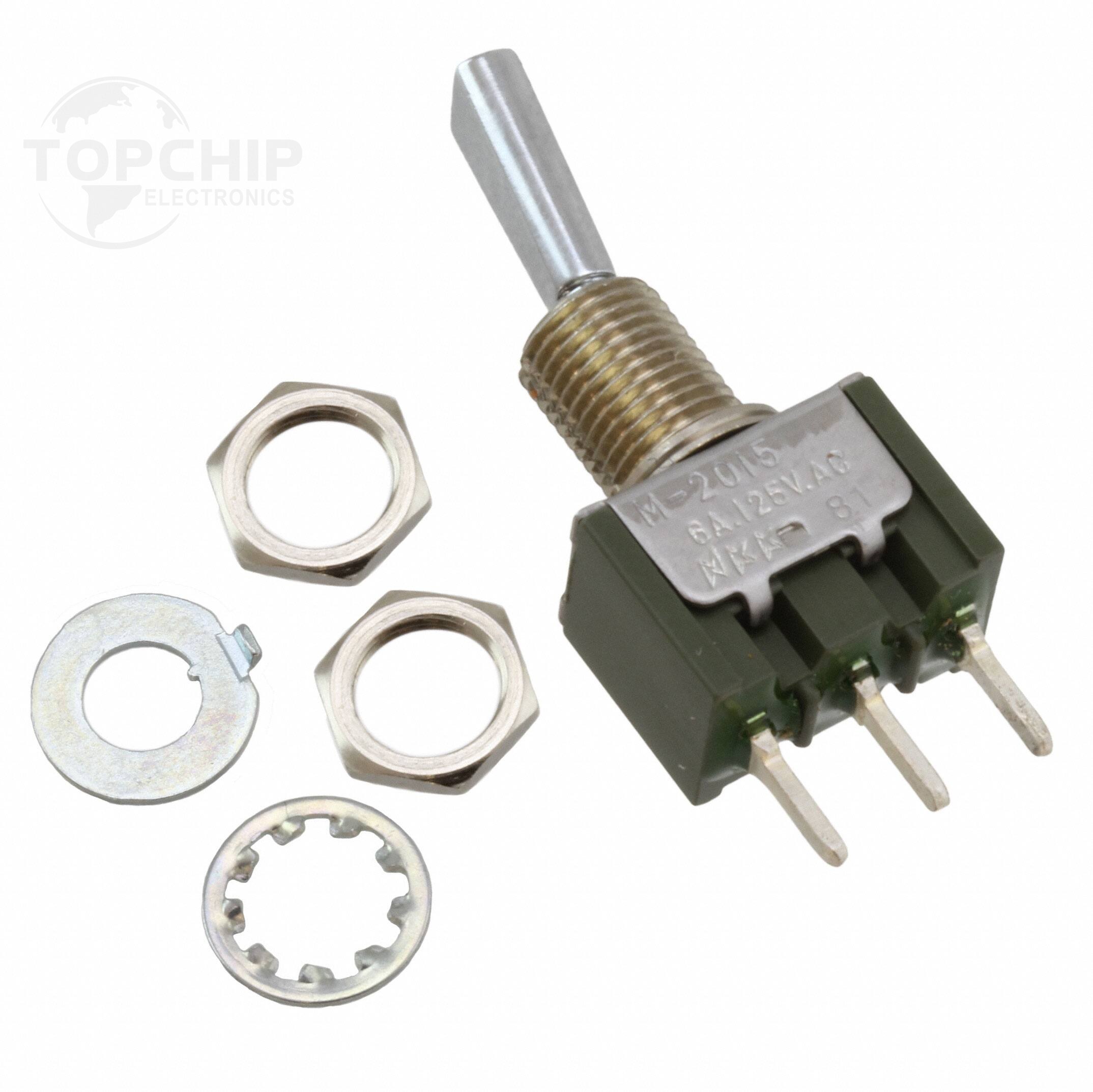

Image is for reference, please contact us to get the real picture

Manufacturer Part
M2015ES1W03
Manufacturer
NKK Switches
Description
SWITCH TOGGLE SPDT 6A 125V
Category
Switches
Family
Toggle Switches
Series
-
In Stock
10
Datasheets
-

M2015ES1W03 Specifications

  • Series:M
  • Package:Bulk
  • Part Status:Active
  • Mounting Type:Panel Mount
  • Circuit:SPDT
  • Switch Function:On-Mom
  • Current Rating (Amps):6A (AC), 3A (DC)
  • Voltage Rating - AC:125 V
  • Voltage Rating - DC:30 V
  • Actuator Type:Flatted
  • Actuator Length:11.40mm
  • Illumination:Non-Illuminated
  • Illumination Type, Color:-
  • Illumination Voltage (Nominal):-
  • Termination Style:PC Pin
  • Panel Cutout Dimensions:Circular - 6.50mm Dia
  • Bushing Thread:1/4-40
  • Ingress Protection:-
  • Features:Epoxy Sealed Terminals
  • Operating Temperature:-30°C ~ 85°C
